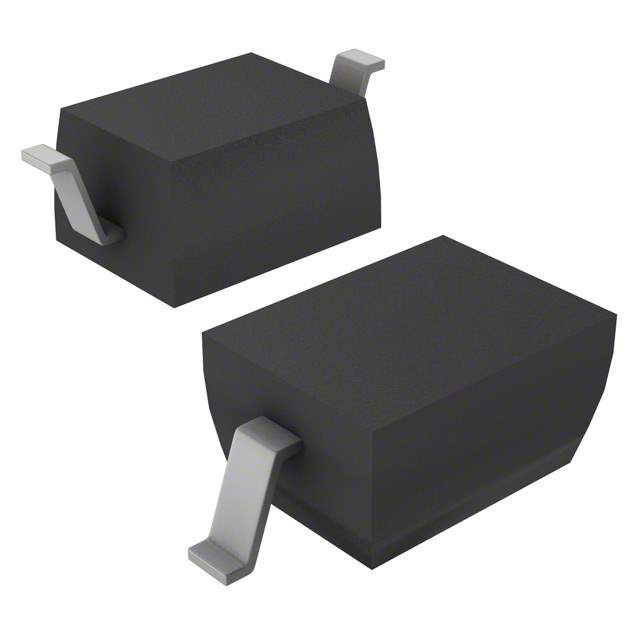

The CUS05S40 is a Schottky Barrier Diode manufactured by Toshiba Semiconductor and Storage. This diode is designed for high-speed switching applications and features a low forward voltage drop, making it ideal for circuits where efficiency is critical.

Applications:

• Switching Power Supplies: Used as a rectifier in high-frequency switching power supplies.
• DC-DC Converters: Employed in DC-DC converters for efficient voltage conversion.
• Reverse Polarity Protection: Implemented to protect circuits from reverse voltage conditions.
• Free-Wheeling Diodes: Utilized in inductive load circuits such as relays and solenoids.
• Solar Panel Bypass Diodes: Protect solar cells from damage due to shading.

Features:

• Low Forward Voltage Drop: Reduces power loss and improves efficiency.
• High Switching Speed: Enables fast recovery times, making it suitable for high-frequency applications.
• Small Package Size: Allows for compact designs in space-constrained applications.
• High Surge Current Capability: Withstands large surge currents, enhancing reliability.
• Low Leakage Current: Minimizes reverse leakage current at high temperatures.

Benefits:

• Improved Efficiency: Low forward voltage drop reduces power dissipation.
• Enhanced Switching Performance: Fast recovery time improves switching efficiency in high-frequency circuits.
• Compact Design: Small package size allows for integration into densely populated circuit boards.
• Increased Reliability: High surge current capability ensures robust performance under transient conditions.
• Extended Operating Life: Low leakage current improves diode longevity.

Additional Details:

The CUS05S40 diode boasts a repetitive peak reverse voltage (VRRM) of 40V and a forward current (IF) of 0.5A. Its low forward voltage drop (VF) typically ranges between 0.3V to 0.5V, depending on the current. It comes in a small surface-mount package, ideal for automated assembly. This diode is a reliable choice for efficient and high-speed rectification in various electronic applications.
