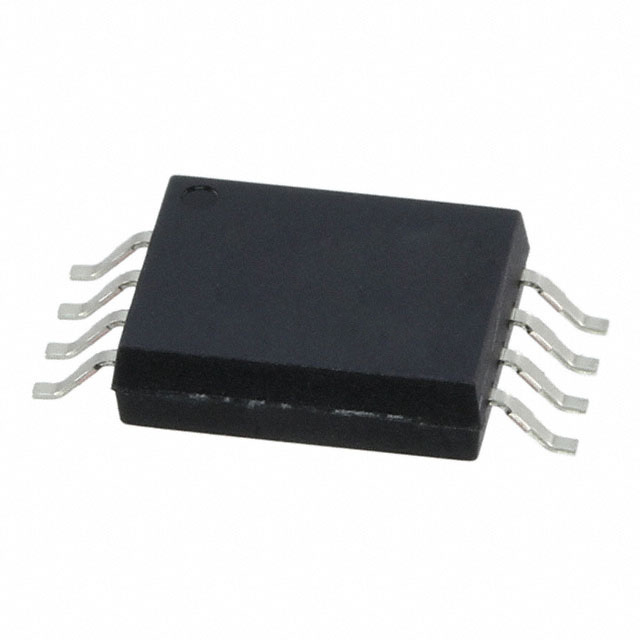

TLP2261(D4-TP4,E Toshiba Semiconductor and Storage
Same model may have multiple batches, images only for reference.

TLP2261(D4-TP4,E

Part No TLP2261(D4-TP4,E
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Logic Output
Description HIGH SPEED LOGIC OUTPUT OPTOCOUP / Logic Output Optoisolator 15MBd Push-Pull, Totem Pole 5000Vrms 2 Channel 20kV/µs CMTI 8-SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Logic Output
Mfr Toshiba Semiconductor and Storage
Package Tape & Reel (TR)
Number of Channels 2
Inputs - Side 1/Side 2 2/0
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Min) 20kV/µs
Input Type DC
Output Type Push-Pull, Totem Pole
Current - Output / Channel 10 mA
Data Rate 15MBd
Propagation Delay tpLH / tpHL (Max) 80ns, 80ns
Rise / Fall Time (Typ) 3ns, 3ns
Voltage - Forward (Vf) (Typ) 1.5V
Current - DC Forward (If) (Max) 10mA
Voltage - Supply 2.7V ~ 5.5V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 8-SOIC (0.295", 7.50mm Width)
Supplier Device Package 8-SO
Base Product Number TLP2261
ECCN EAR99
HTSUS 8541.49.8000
Other Names TLP2261(D4-TP4E
Standard Package 1,500
Win Source Part Number 1212400-TLP2261(D4-TP4,E
Ultra Librarian 3D Model Ultra Librarian TLP2261(D4-TP4,E CAD Model

Description

This electronic component is an optoisolator with a logic output manufactured by Toshiba Semiconductor and Storage.

  • Package: Tape and Reel
  • Standard Package: 1,500
  • Output Type: Push-Pull, Totem Pole
  • Data Rate: 15MBd
  • Voltage: 2.7V to 5.5V
  • Operating Temperature: -40°C to 125°C
