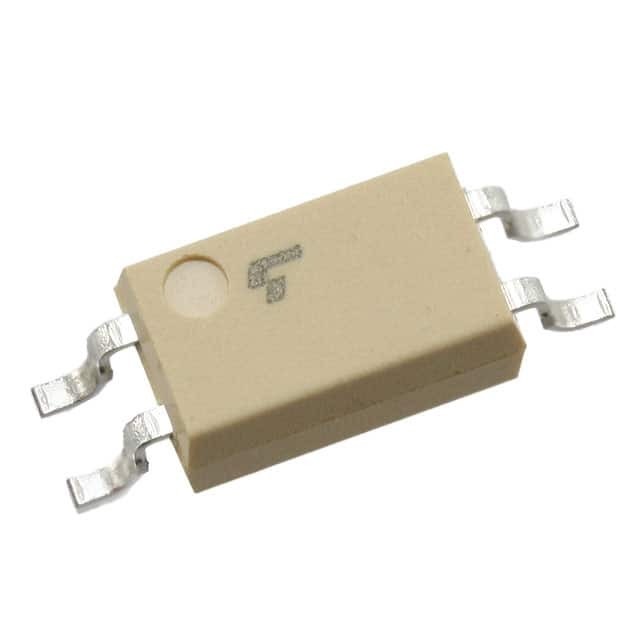

The Toshiba Semiconductor and Storage TLP293(BLL-TPL,E) is an optoisolator transistor with a photovoltaic output.

• Output Type: Transistor
• Input Type: DC
• Forward Current (If): 50 mA
• Forward Voltage (Vf): 1.25V (Typ)
• Rise/Fall Time: 2μs, 3μs
• Output Current/Channel: 50mA
• Voltage Isolation: 3750Vrms
• Current Transfer Ratio (Min): 200% @ 500μA
• Voltage Output: 80V
• Vce Saturation: 300mV
• Current Transfer Ratio (Max): 400% @ 500μA
• Turn On/Turn Off Time (Typ): 3μs, 3μs
• Package: 4-SOIC (0.179", 4.55mm Width)
• Operating Temperature: -55°C ~ 125°C
