Products specifications Report Issue?

Category Power Supplies - Board Mount>AC DC Converters
Manufacturer Traco Power
Packaging Box
Type Enclosed
Number of Outputs 1
Voltage - Input 90 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 5V
Current - Output (Max) 3.6A
Power (Watts) 18 W
Applications ITE (Commercial)
Features Universal Input
Temperature Range - Operating -25°C ~ 60°C (With Derating)
Efficiency 78%
Mounting Through Hole
Case / Package 4-DIP Module
Size / Dimension 2.06" L x 1.07" W x 0.93" H (52.4mm x 27.2mm x 23.5mm)
Approval Agency CE, cURus
Line Regulation 0.5%
Load Regulation ±1%
Base Product Number TMLM 20
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9510
Other Part Number 1951-1158
Standard Package 10
Win Source Part Number 1336090-TMLM 20105
Ultra Librarian 3D Model Ultra Librarian TMLM 20105 CAD Model

Description

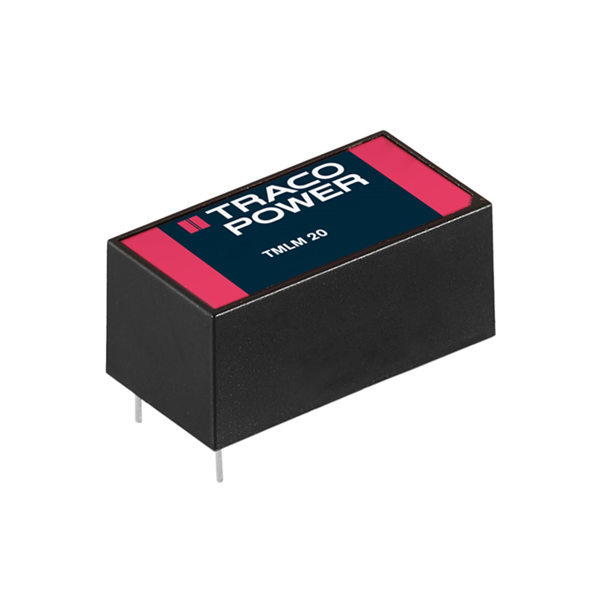

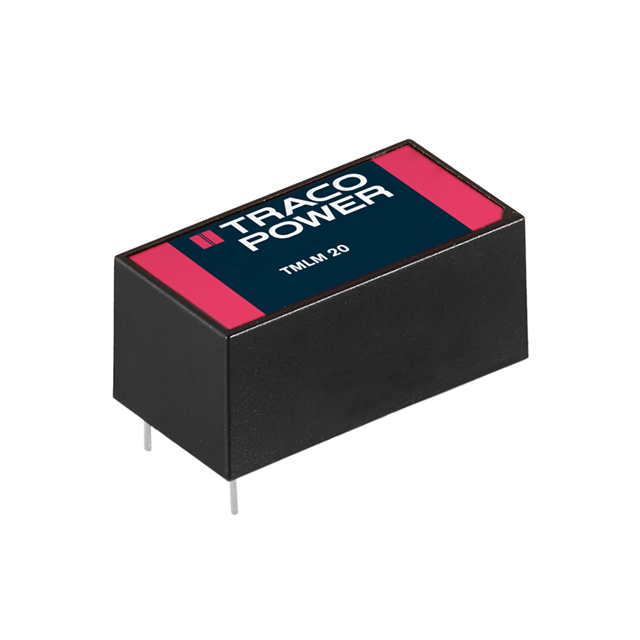

The Traco Power TMLM 20105 is a 18W enclosed AC/DC converter designed for ITE (Commercial) applications.

  • Input Voltage Range: 90-264 VAC and 120-370 VDC
  • Output Voltage: 5V
  • Output Current (Max): 3.6A
  • Efficiency: 78%
  • Line Regulation: 0.5%
  • Mounting Style: Through-hole
  • Operating Temperature: -25°C to 60°C (with derating)
  • Packaging: Box packaging
  • Approval Agency: cURus and CE approvals
