Same model may have multiple batches, images only for reference.

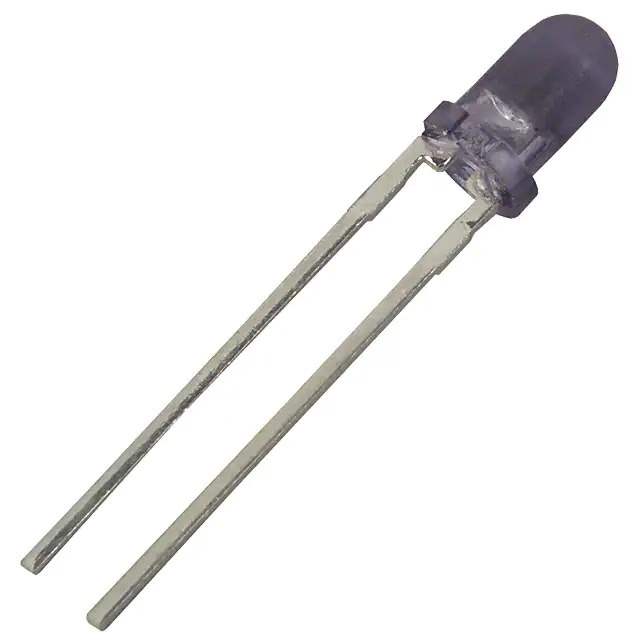

OP506B Real Image
Same model may have multiple batches, images only for reference.

OP506B

Part No OP506B
Manufacturer TT Electronics
Catalog Optical Sensors - Phototransistors
Description SENSOR PHOTO 935NM TOP VIEW T1 / Phototransistors 935nm Top View T-1
Datasheet
OP506B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Optical Sensors - Phototransistors
Mfr TT Electronics
Package Bulk
Product Status Active
Voltage - Collector Emitter Breakdown (Max) 30 V
Current - Collector (Ic) (Max) 5.95 mA
Current - Dark (Id) (Max) 100 nA
Wavelength 935nm
Power - Max 100 mW
Mounting Type Through Hole
Orientation Top View
Temperature Range - Operating -40°C ~ 100°C (TA)
Package / Case T-1
Base Product Number OP506
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.7080
Win Source Part Number 888064-OP506B
Ultra Librarian 3D Model Ultra Librarian OP506B CAD Model

Description

The OP506B Phototransistor with the Win Source Part Number 888064-OP506B is a reliable and high-performance optical sensor.

  • Orientation: Top View
  • Maximum Power Rating: 100mW
  • Voltage Collector Emitter Breakdown: 30V
  • Operating Temperature: -40°C to 100°C
  • Manufacturer: TT Electronics
  • Product Status: Active
