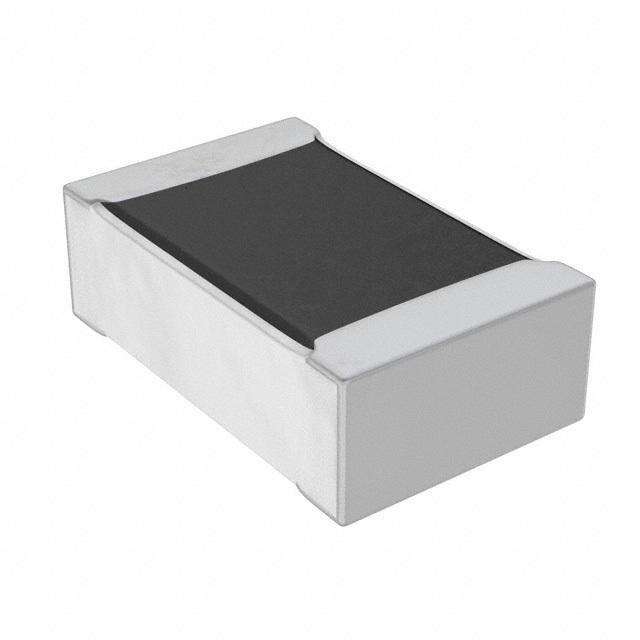

Same model may have multiple batches, images only for reference.
PFC-W0805LF-03-2002-B TT Electronics
Same model may have multiple batches, images only for reference.

PFC-W0805LF-03-2002-B

Part No PFC-W0805LF-03-2002-B
Manufacturer TT Electronics
Catalog Chip Resistor - Surface Mount
Description RES SMD 20K OHM 0.1% 1/4W 0805 / Res Thin Film 0805 20K Ohm 0.1% 0.25W(1/4W) ±25ppm/°C Pad SMD Automotive T/R
Datasheet
PFC-W0805LF-03-2002-B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer TT Electronics/IRC
Series PFC - Precision
Packaging Reel package
Resistance (Ohms) 20k
Tolerance ±0.1%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur, Moisture Resistant
Temperature Coefficient ±25ppm/°C
Operating Temperature Range -65°C ~ 150°C
Package 0805
Manufacturer Package 0805
Dimension 0.081" L x 0.050" W (2.06mm x 1.27mm)
Height - Seated (Maximum) 0.026" (0.66mm)
Number of Terminations 2
Win Source Part Number 791727-PFC-W0805LF-03-2002-B
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Family Name PFC
Introduction Date May 09, 2008
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian PFC-W0805LF-03-2002-B CAD Model

Description

The TT Electronics/IRC PFC-W0805LF-03-2002-B is a precision thin film resistor designed for resistive applications from TT Electronics/IRC.

  • Series: PFC - Precision
  • Resistance: 20k ohms
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Power Rating: 0.25W
  • Package: 0805
  • Packaging: Reel, 1k pcs
  • Compliance: Halogen-free
  • Supply and Demand: Balanced
  • Estimated EOL: 2028
