Same model may have multiple batches, images only for reference.

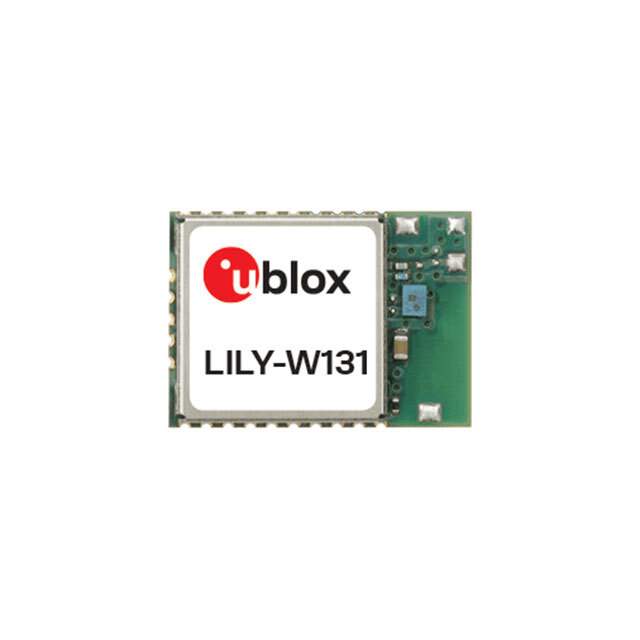

LILY-W131-00B Real Image
Same model may have multiple batches, images only for reference.

LILY-W131-00B

Part No LILY-W131-00B
Manufacturer U-blox
Catalog RF Transceiver Modules
Description MOD WI-FI 2.4 GHZ SDIO/USB LINUX / WiFi 802.11b/g/n Transceiver Module 2.412GHz ~ 2.472GHz Antenna Not Included Surface Mount
Datasheet
LILY-W131-00B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr U-Blox
Series LILY-W1
Package Tape & Reel
RF Family/Standard WiFi
Protocol 802.11b/g/n
Frequency 2.412GHz ~ 2.472GHz
Data Rate 72.2Mbps
Power - Output 19dBm
Sensitivity -97dBm
Serial Interfaces SDIO, USB
Antenna Type Antenna Not Included
Utilized IC / Part 88W8801
Voltage - Supply 3V ~ 3.6V
Current - Receiving 82mA ~ 84mA
Current - Transmitting 270mA ~ 340mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 37-SMD Module
Base Product Number LILY-W131
Standard Package 500
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1349845-LILY-W131-00B
Ultra Librarian 3D Model Ultra Librarian LILY-W131-00B CAD Model

Description

The 1165124 is an electronic component in the RF and Wireless - RF Transceiver Modules and Modems category. It is part of the LILY-W1 series and has a tape and reel package with a standard package of 500. 1165124 manufactured by U-Blox.

  • Frequency Range: 2.412GHz to 2.472GHz
  • Protocol: 802.11b/g/n
  • Data Rate: 72.2Mbps
  • Memory Size: Not specified
  • Antenna Type: Not included
  • Power Output: 19dBm
  • Sensitivity: -97dBm
  • Current (Receiving): 82mA to 84mA
  • IC/Part: 88W8801
  • RF Family/Standard: WiFi
  • Modulation: Not specified
  • Serial Interfaces: SDIO and USB
  • Current (Transmitting): 270mA to 340mA
  • Voltage Supply: 3V to 3.6V
  • Mounting Type: Surface Mount
  • Package/Case: 37-SMD Module
  • Operating Temperature: -40°C to 85°C
  • MSL Level: 4 (72 Hours)
  • REACH Status: REACH Unaffected
  • HTSUS: 8517.62.0090
  • Base Product Number: LILY-W131
