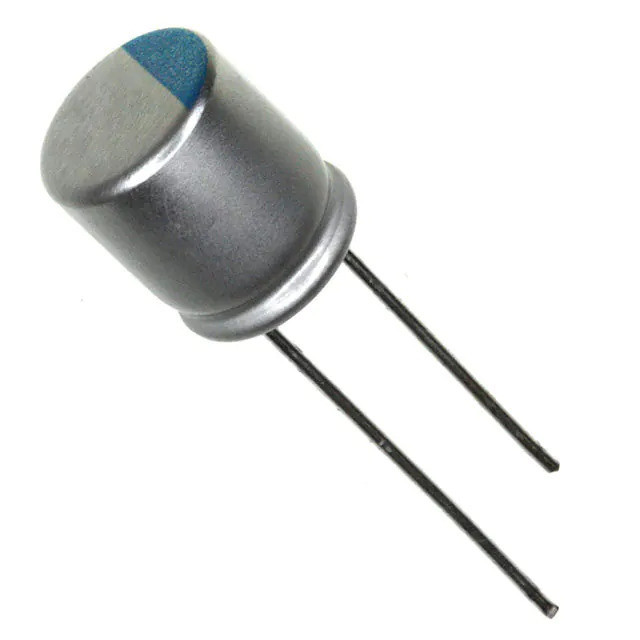

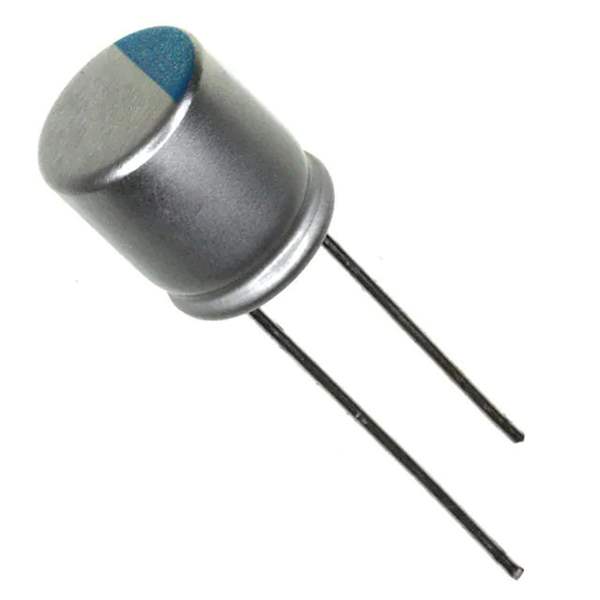

Same model may have multiple batches, images only for reference.

APSG160ELL152MJ16S

Name: APSG160ELL152MJ16S
Brand: United Chemi-Con
SKU: 1359480
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	APSG160ELL152MJ16S
Manufacturer	United Chemi-Con
Catalog	Aluminum - Polymer Capacitors
Description	CAP ALUM POLY 1500UF 20% 16V T/H / 1500 µF 16 V Aluminum - Polymer Capacitors Radial, Can 8mOhm 20000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum - Polymer Capacitors
Mfr	United Chemi-Con
Series	NPCAP™-PSG
Package	Bulk
Product Status	Active
Type	Polymer
Capacitance	1500 µF
Tolerance	±20%
Voltage - Rated	16 V
ESR (Equivalent Series Resistance)	8mOhm
Lifetime @ Temp.	20000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	7.7 A @ 100 kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.689" (17.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1359480-APSG160ELL152MJ16S
Ultra Librarian 3D Model	Ultra Librarian APSG160ELL152MJ16S CAD Model

Description

The 1359480-APSG160ELL152MJ16S is a polymer capacitor from United Chemi-Con's NPCAP™-PSG series.

Series: NPCAP™-PSG
Capacitance: 1500 μF
Voltage Rating: 16 V
Temperature Range: -55°C to 105°C
ESR: 8mOhm
Diameter: 0.394 inches
Height: 0.689 inches
Mounting Type: Through-Hole
Package: Radial, Can
Lifetime: 20,000 hours @ 105°C
REACH Compliance: Compliant
ECCN: EAR99
Product Status: Active
