Same model may have multiple batches, images only for reference.

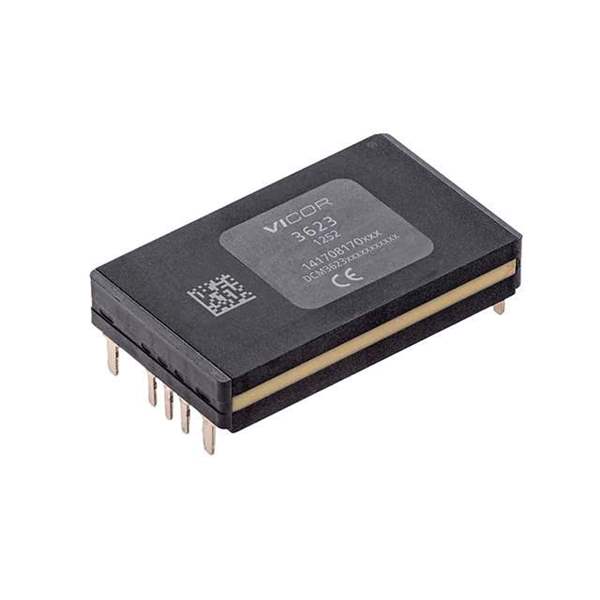

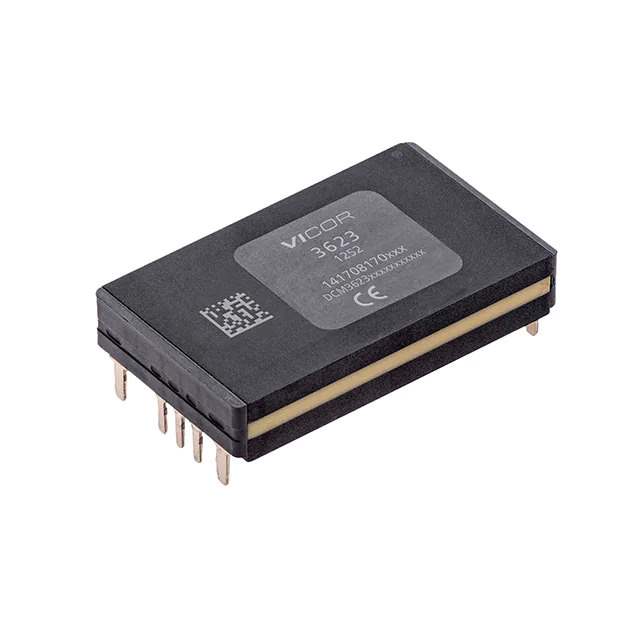

DCM24AP120T320A50 Real Image
Same model may have multiple batches, images only for reference.

DCM24AP120T320A50

Part No DCM24AP120T320A50
Manufacturer Vicor Corporation
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 320W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Vicor Corporation
Series VI Chip® DCM® (320W)
Package Tray
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Current - Output (Max) 26.67A
Power (Watts) 320 W
Voltage - Isolation 2.25 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Temperature Range - Operating -40°C ~ 125°C
Efficiency 93.1%
Mounting Type Through Hole
Package / Case 9-DIP Module
Size / Dimension 1.52" L x 0.90" W x 0.29" H (38.7mm x 22.8mm x 7.3mm)
Base Product Number DCM24
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 584179-DCM24AP120T320A50
Ultra Librarian 3D Model Ultra Librarian DCM24AP120T320A50 CAD Model

Description

The 584179-DCM24AP120T320A50 is an isolated module from the VI Chip® DCM® (320W) series. Vicor Corporation.

  • Series: VI Chip® DCM® (320W)
  • Application: ITE (Commercial)
  • Power: 320W
  • Voltage Isolation: 2.25 kV
  • Size: 1.52 inches (38.7mm) L x 0.90 inches (22.8mm) W x 0.29 inches (7.3mm) H
  • Current Output: 26.67A
  • Voltage Input: 18V to 36V
  • Features: Remote On/Off, OCP, OTP, OVP, SCP, UVLO
  • Package: Tray
  • Package Size: 25 pieces
  • Efficiency: 93.1%
  • Operating Temperature: -40°C to 125°C
  • REACH: Unaffected
  • ECCN: EAR99
  • Status: Active
