Same model may have multiple batches, images only for reference.

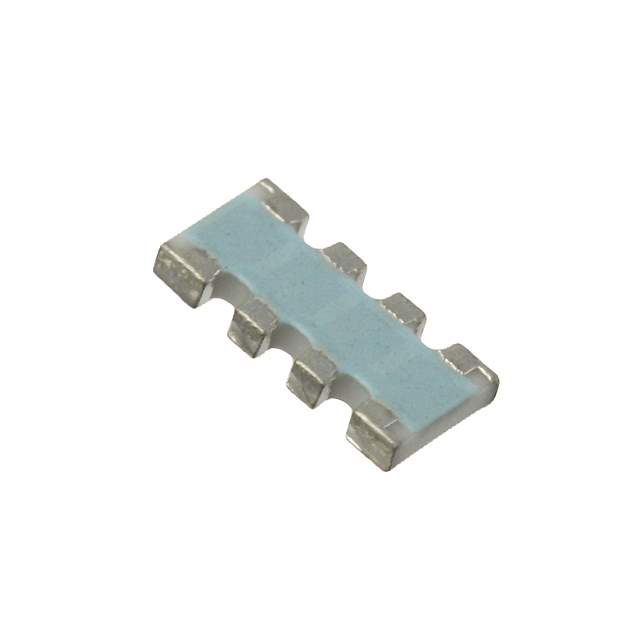

ACASA1002S1002P100 Real Image
Same model may have multiple batches, images only for reference.

ACASA1002S1002P100

Part No ACASA1002S1002P100
Manufacturer Vishay
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 10K OHM 1206  /  10k Ohm ±0.1% 100mW Power Per Element Isolated 4 Resistor Network/Array ±25ppm/°C 1206 (3216 Metric), Convex, Long Side Terminals
Datasheet
ACASA1002S1002P100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Resistor Networks, Arrays
Mfr Vishay Beyschlag/Draloric/BC Components
Series ACA - Precision
Package Tape & Reel
Circuit Type Isolated
Resistance (Ohms) 10k
Tolerance ±0.1%
Number of Resistors 4
Resistor Matching Ratio ±0.05%
Resistor-Ratio-Drift ±15ppm/°C
Number of Pins 8
Power Per Element 100mW
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Applications Voltage Divider (TCR Matched)
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric), Convex, Long Side Terminals
Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.022" (0.55mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0020
Other Names ACASA1002S1002P100-ND,749-1023-2,749-1023-1,749-1023-6
Standard Package 1,000
Win Source Part Number 1029828-ACASA1002S1002P100
Ultra Librarian 3D Model Ultra Librarian ACASA1002S1002P100 CAD Model

Description

The Vishay Beyschlag/Draloric/BC Components ACASA1002S1002P100 is a precision resistor network that is designed for use in voltage divider applications.

  • Resistance: 10kΩ
  • Tolerance: ±0.1%
