Same model may have multiple batches, images only for reference.

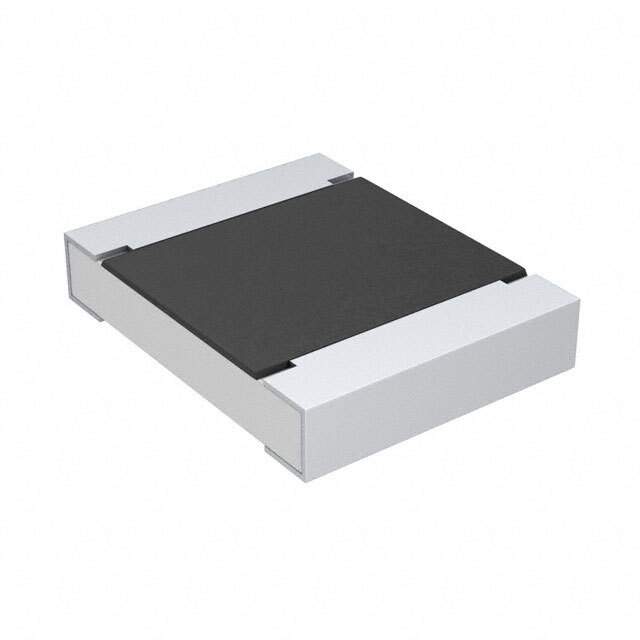

CRCW12102K40JNEA Real Image
Same model may have multiple batches, images only for reference.

CRCW12102K40JNEA

Part No CRCW12102K40JNEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 2.4K OHM 5% 1/2W 1210 / 2.4 kOhms ±5% 0.5W, 1/2W Chip Resistor 1210 (3225 Metric) Automotive AEC-Q200 Thick Film
Datasheet
CRCW12102K40JNEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Vishay Dale
Packaging Reel - TR
Resistance 2.4 kOhms
Tolerance ±5%
Power (Watts) 0.5W, 1/2W
Composition Thick Film
Features Automotive AEC-Q200
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 1210 (3225 Metric)
Supplier Device Package 1210
Ratings AEC-Q200
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
Base Product Number CRCW1210
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 541-2.4KVCT,541-2.4KVDKR,CRCW1210 200 2K4 5% ET1 E3,541-2.4KVTR
Standard Package 5,000
Win Source Part Number 1327103-CRCW12102K40JNEA
Ultra Librarian 3D Model Ultra Librarian CRCW12102K40JNEA CAD Model

Description

The Vishay Dale CRCW12102K40JNEA is a chip resistor designed for surface mount applications.

  • Resistance: 2.4 kohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Power Rating: 0.5W or 1/2W
  • Composition: thick film
  • Package: 5,000
  • Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Height: 0.024" (0.60mm)
  • Operating Temperature Range: -55°C to 155°C
  • Compliance: AEC-Q200
