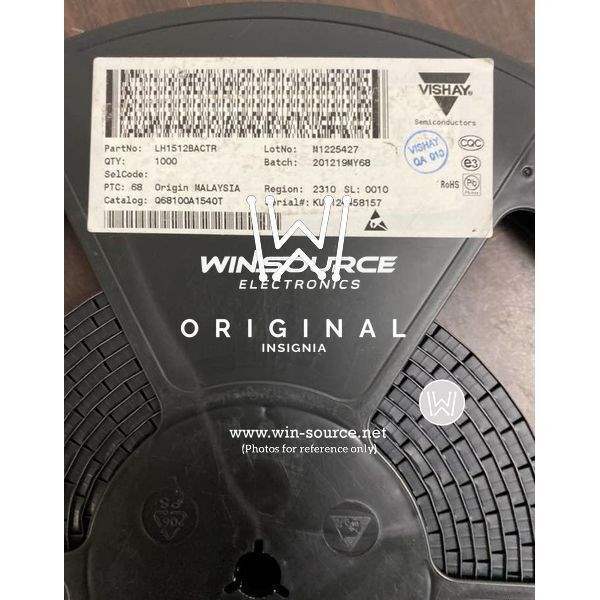

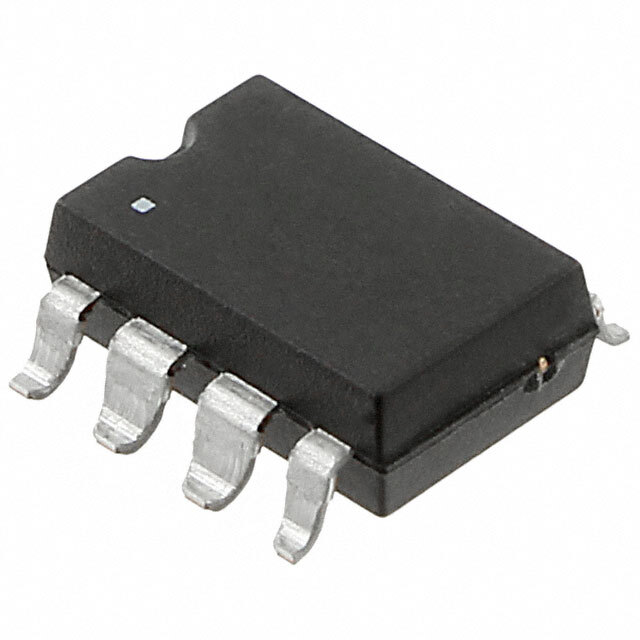

LH1512BACTR Vishay LH1512BACTR Real Image LH1512BACTR label picture
Same model may have multiple batches, images only for reference.
LH1512BACTR Vishay LH1512BACTR Real Image LH1512BACTR label picture
LH1512BACTR Vishay LH1512BACTR Real Image LH1512BACTR label picture
Same model may have multiple batches, images only for reference.

LH1512BACTR

Part No LH1512BACTR
Manufacturer Vishay
Catalog Solid State Relays
Description SMD-8 SSR DUAL 1 FORM A/B, C
Datasheet
LH1512BACTR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Vishay
Packaging Reel - TR
Status Active
Circuit DPST-NO/NC (1 Form A and B)
Output Type AC, DC
Max On Resistance 10 Ohm
Load Current 200mA
Voltage - Input 1.26VDC
Voltage - Load 0 to 200 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 8-SMD
Relay Type Relay
Win Source Part Number 088635-LH1512BACTR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LH1512BACTR CAD Model

Description

The LH1512BACTR is a DPST-NO/NC (1 Form A and B) relay manufactured by Vishay.

  • Load Current: 200mA
  • Voltage - Load: 0 to 200 V
  • Maximum On Resistance: 10 Ohm
  • Package: 8-SMD
  • Packaging: Reel - TR
  • Termination Style: Gull wing
  • Mounting: SMD (SMT)
  • Input Voltage: 1.26VDC
  • Output Type: AC and DC
  • Status: Active
  • Popularity: High
  • Supply and Demand Status: Limited
