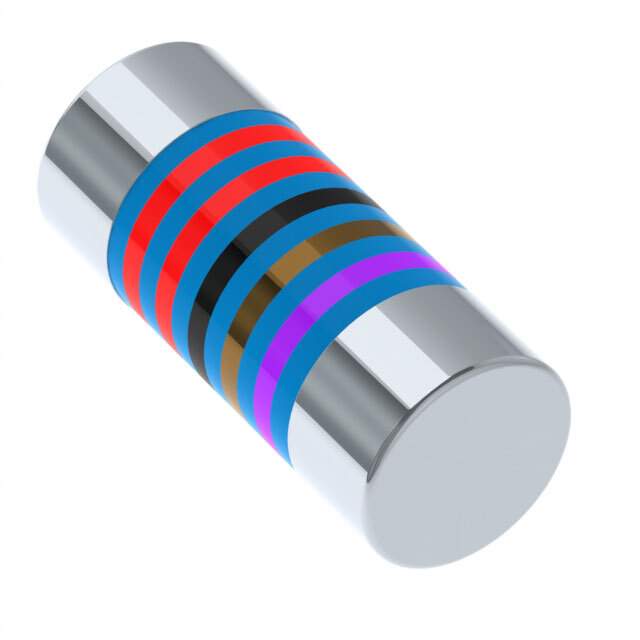

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Beyschlag/Draloric/BC Components
Series MMA - Precision
Package Tape & Reel
Resistance 2.2 kOhms
Tolerance ±0.1%
Power (Watts) 0.25W, 1/4W
Composition Thin Film
Features Anti-Sulfur, Automotive AEC-Q200
Temperature Coefficient ±15ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case MELF, 0204
Supplier Device Package 0204
Ratings AEC-Q200
Dimension 0.055" Dia x 0.142" L (1.40mm x 3.60mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Other Names 749-2093-2,749-2093-1,749-2093-6
Standard Package 1,000
Win Source Part Number 1056616-MMA02040E2201BB100
Ultra Librarian 3D Model Ultra Librarian MMA02040E2201BB100 CAD Model

Description

The Vishay Beyschlag MMA02040E2201BB100 chip resistor is a high-quality component that is suitable for use in various electronic applications.

  • Resistance: 2.2 kohms
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±15ppm/°C
  • AEC-Q200 Certified: Yes
  • Film Type: Thin-film
  • Coating: Anti-sulfur
  • Terminations: 2
  • Packaging: Tape and reel
