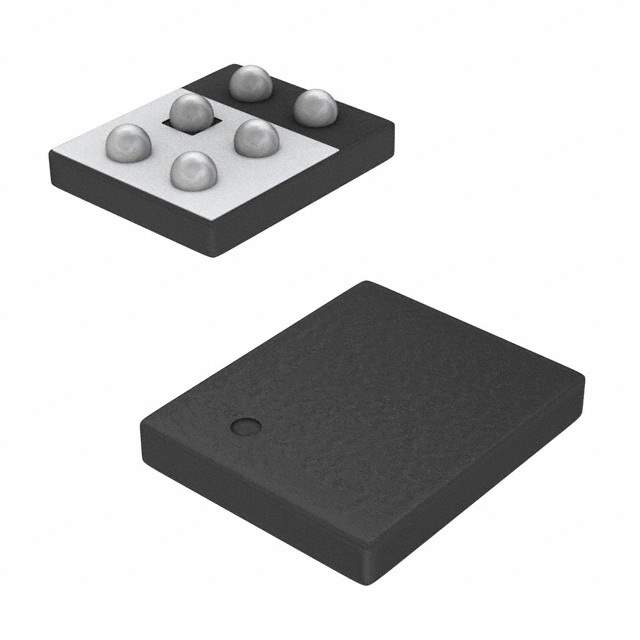

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Arrays
Mfr Vishay Siliconix
Series TrenchFET®
Package Tape & Reel
Product Status Obsolete
FET Type 2 N-Channel (Dual) Common Drain
FET Feature Logic Level Gate
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 3.8A
Vgs(th) (Max) @ Id 1.6V @ 250µA
Power - Max 1W
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case 6-MICRO FOOT®CSP
Supplier Device Package 6-Micro Foot™ (2.36x1.56)
Base Product Number SI8904
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names SI8904EDBT2E1,SI8904EDB-T2-E1DKR,SI8904EDB-T2-E1CT,SI8904EDB-T2-E1TR
Standard Package 3,000
Win Source Part Number 1092776-SI8904EDB-T2-E1
Ultra Librarian 3D Model Ultra Librarian SI8904EDB-T2-E1 CAD Model

Description

The SI8904EDB-T2-E1 is a dual N-Channel MOSFET transistor array by Vishay Siliconix.

  • Series: TrenchFET™
  • Gate: Logic Level Gate
  • Vdss: 30V
  • Id @ 25°C: 3.8A
  • Power Output: 1W
  • Package/Case: 6-MICRO FOOT®CSP
  • Supplier Device Package: 6-Micro Foot™ (2.36x1.56)
  • Temperature Range: -55°C to 150°C (TJ)
