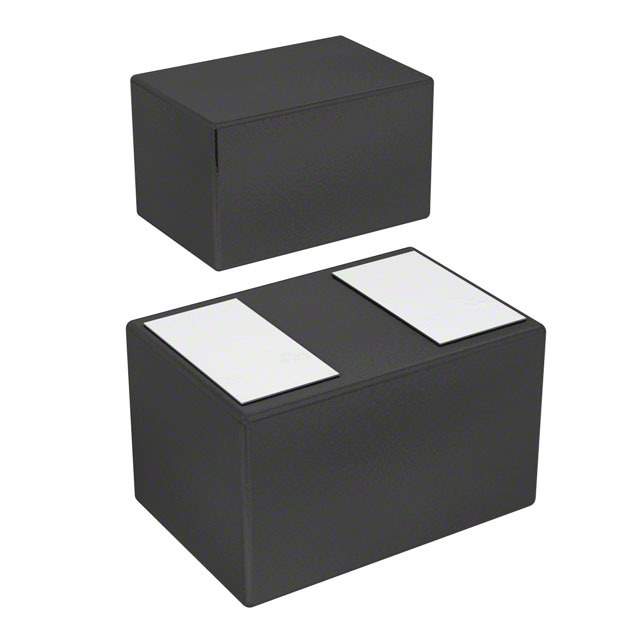

VBUS05A1-SD0-G4-08 Real Image
Same model may have multiple batches, images only for reference.

VBUS05A1-SD0-G4-08

Part No VBUS05A1-SD0-G4-08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 18VC CLP0603  /  18V Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount CLP0603
Datasheet
VBUS05A1-SD0-G4-08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Vishay General Semiconductor - Diodes Division
Package Tape & Reel (TR)
Product Status Obsolete
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5.5V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 18V
Current - Peak Pulse (10/1000µs) 2.5A (8/20µs)
Power - Peak Pulse 45W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 0.52pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case 0201 (0603 Metric)
Supplier Device Package CLP0603
Base Product Number VBUS05
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 15,000
Win Source Part Number 1014459-VBUS05A1-SD0-G4-08
Ultra Librarian 3D Model Ultra Librarian VBUS05A1-SD0-G4-08 CAD Model

Description

The VBUS05A1-SD0-G4-08 is a Zener type TVS diode designed for general purpose applications and supplied by Vishay General Semiconductor - Diodes Division.

  • Packaging: Tape & Reel (TR)
  • Mounting: Surface Mount Device (SMD)
  • Reverse Standoff Voltage: 5.5V
  • Breakdown Voltage: 6V
  • Clamping Voltage: 18V @ 2.5A
  • Power Peak Pulse: 45W
  • Capacitance: 0.52pF @ 1MHz
  • Operating Temperature: -55°C to 150°C
