Same model may have multiple batches, images only for reference.

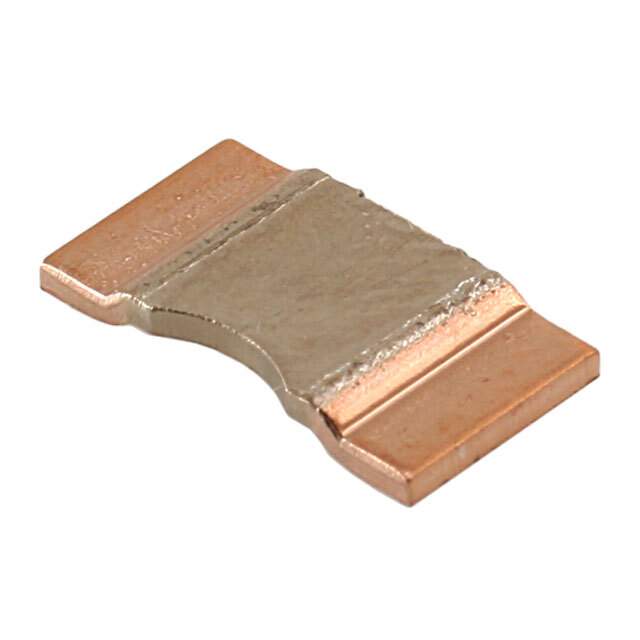

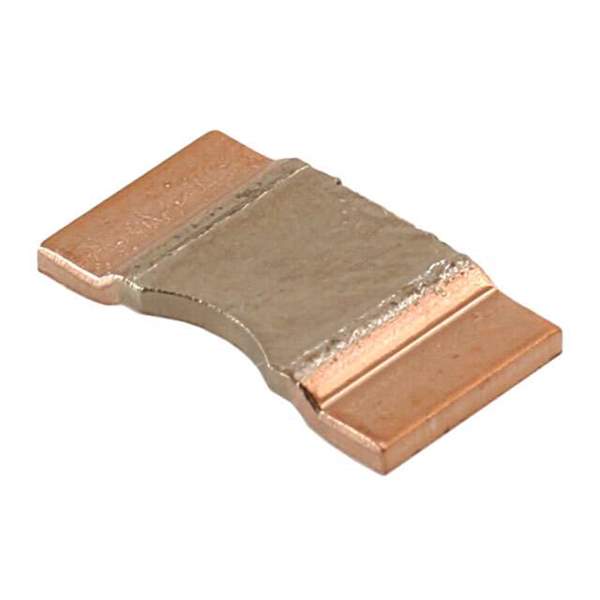

WSLF25121L000FEA Real Image
Same model may have multiple batches, images only for reference.

WSLF25121L000FEA

Part No WSLF25121L000FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.001 OHM 1% 5W 2512 / 1 mOhms ±1% 5W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Datasheet
WSLF25121L000FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Manufacturer Vishay Dale
Packaging Reel - TR
Resistance 1 mOhms
Tolerance ±1%
Power (Watts) 5W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±170ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Case / Package 2512 (6432 Metric)
Supplier Device Package 2512
Ratings AEC-Q200
Size / Dimension 0.250" L x 0.119" W (6.35mm x 3.02mm)
Height - Seated (Max) 0.034" (0.86mm)
Number of Terminations 2
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 541-3125-6,541-3125-1,541-3125-2
Standard Package 4,000
Win Source Part Number 1327110-WSLF25121L000FEA
Ultra Librarian 3D Model Ultra Librarian WSLF25121L000FEA CAD Model

Description

The Vishay Dale WSLF25121L000FEA is a chip resistor that is designed for use in surface mount applications.

  • Resistance: 1 mOhms
  • Tolerance: ±1%
  • Power Rating: 5W
  • Temperature Coefficient: ±170ppm/°C
  • Series: Automotive AEC-Q200, Current Sense, Moisture Resistant, and Pulse Withstanding
  • Package: reel - TR
  • Package: 4,000
  • ROHS3: compliant
