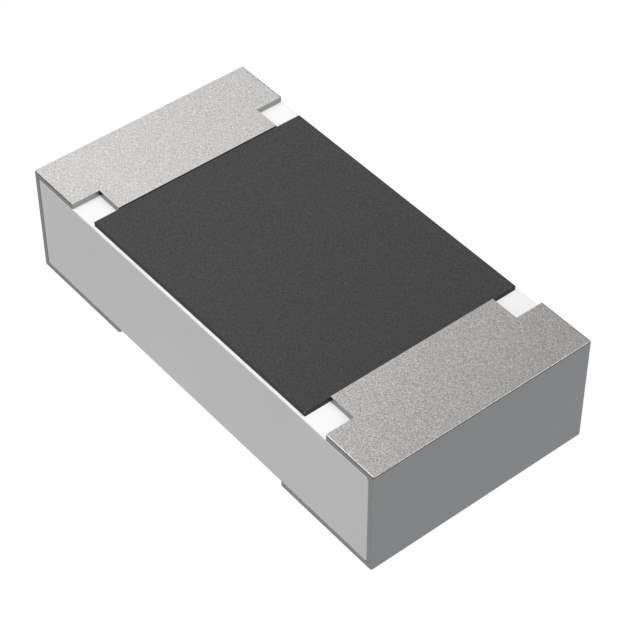

Same model may have multiple batches, images only for reference.
WR04X3241FTL Walsin Technology Corporation
Same model may have multiple batches, images only for reference.

WR04X3241FTL

Part No WR04X3241FTL
Manufacturer Walsin Technology Corporation
Catalog Chip Resistor - Surface Mount
Description WR04X3241FTL
Datasheet
WR04X3241FTL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309165-WR04X3241FTL
Category Resistors - Chip Resistor - Surface Mount
Mfr Walsin Technology Corporation
Packaging  Tape & Reel (TR)
Part Status Active
Resistance (Ohms) 3.24 kOhms
Tolerance ±1%
Power (Watts) 0.063W, 1/16W
Composition Thick Film
Temperature Coefficient ±100ppm/°C
Operating Temperature -55°C ~ 155°C
Ultra Librarian 3D Model Ultra Librarian WR04X3241FTL CAD Model

Description

The resistors are constructed in a high grade ceramic body (aluminum oxide). Internal metal electrodes are added at each end and connected by a resistive paste that is applied to the top surface of the substrate. The composition of the paste is adjusted to give the approximate resistance required and the value is trimmed to within tolerance by laser cutting of this resistive layer. The resistive layer is covered with a protective coat. Finally, the two external end terminations are added. For ease of soldering the outer layer of these end terminations is a Tin (lead free) alloy.
