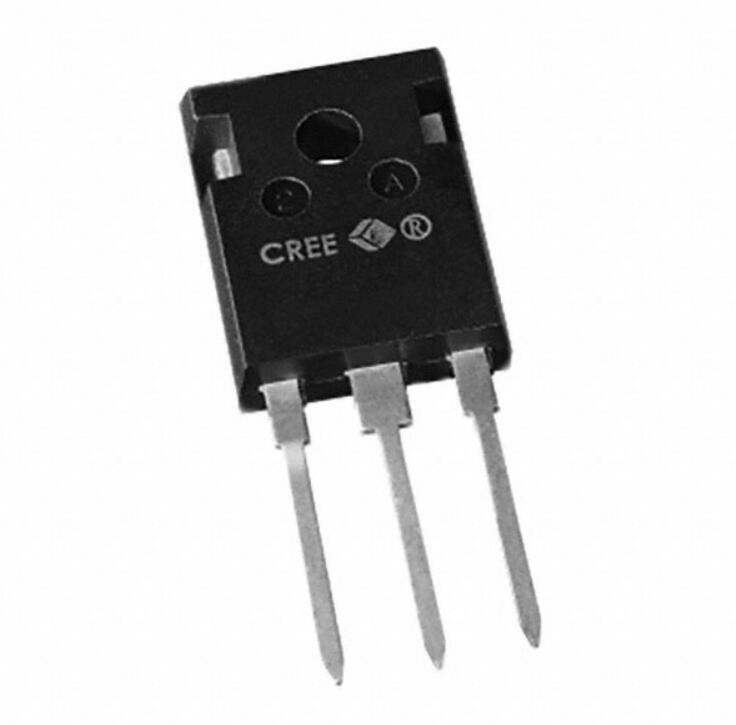

Products specifications

Win Source Part Number WS1197181-C6D20065D
Win Source Part Number Cross
Manufacturer Wolfspeed, Inc.
Category Discrete Semiconductor Products Diodes Rectifiers Diode Arrays
Series Z-Rec®
Package Tube
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) 650 V
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 10 A
Ultra Librarian 3D Model Ultra Librarian C6D20065D CAD Model

Description

The Z-Rec™ series from Wolfspeed is a range of diode arrays designed for rectification applications.

  • Voltage Rating: 650V
  • Technology: SiC (Silicon Carbide) Schottky
  • Configuration: 1 pair common cathode
