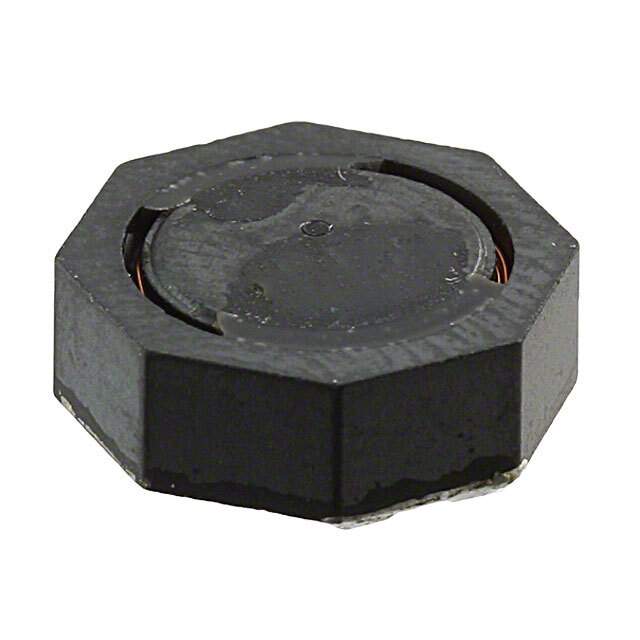

Same model may have multiple batches, images only for reference.

744066005

Name: 744066005
Brand: Wurth Electronics Inc
SKU: 1327854
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744066005
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 5UH 4.9A 22 MOHM SMD / 5 µH Shielded Drum Core, Wirewound Inductor 4.9 A 22mOhm Max Nonstandard
Datasheet	744066005 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	5 µH
Tolerance	±30%
Current Rating (Amps)	4.9 A
Current - Saturation (Isat)	5.5A
Shielding	Shielded
DC Resistance (DCR)	22mOhm Max
Frequency - Self Resonant	30MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.161" (4.10mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-1074-2,732-1074-6,732-1074-1
Standard Package	800
Win Source Part Number	1327854-744066005
Ultra Librarian 3D Model	Ultra Librarian 744066005 CAD Model

Alternative Products

Description

The Würth Elektronik 744066005 is a fixed inductor that belongs to the Inductors, Coils, Chokes category.

Package: Reel - TR
Shielding: Shielded
Inductance: 5 µH
DC Resistance (DCR): 22mOhm Max
Current Rating: 4.9 A
Inductance Frequency of Test: 100 kHz
Temperature Range: -40°C ~ 125°C
Feature: Reliable and efficient product that is perfect for various electronic applications
