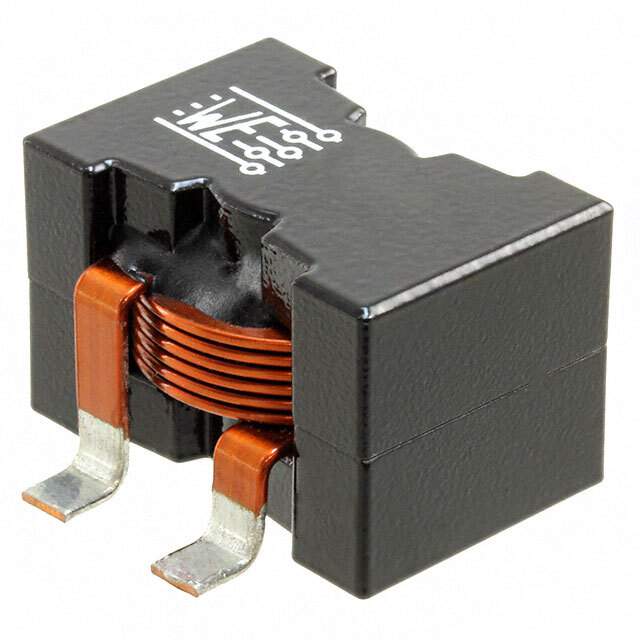

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Tray
Type Drum Core, Wirewound
Material - Core Manganese Zinc Ferrite (MnZn)
Inductance 6.8 µH
Tolerance ±15%
Current Rating (Amps) 30 A
Current - Saturation (Isat) 55A
Shielding Shielded
DC Resistance (DCR) 2.4mOhm
Frequency - Self Resonant 17MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Supplier Device Package 2818
Size / Dimension 1.122" L x 0.768" W (28.50mm x 19.50mm)
Height - Seated (Max) 0.728" (18.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-5625
Standard Package 20
Win Source Part Number 1327689-7443640680
Ultra Librarian 3D Model Ultra Librarian 7443640680 CAD Model

Description

The 1327689-7443640680 is a fixed inductor designed for use in a variety of applications.

  • Inductance: 6.8 µH
  • Tolerance: ±15%
  • Shielding: Shielded
  • Size: 1.122" L x 0.768" W (28.50mm x 19.50mm)
  • DC Resistance: 2.4mOhm
  • Current Rating: 30A
  • Temperature Range: -40°C to 125°C
  • Package: Tray (20 units per standard package)
