Same model may have multiple batches, images only for reference.

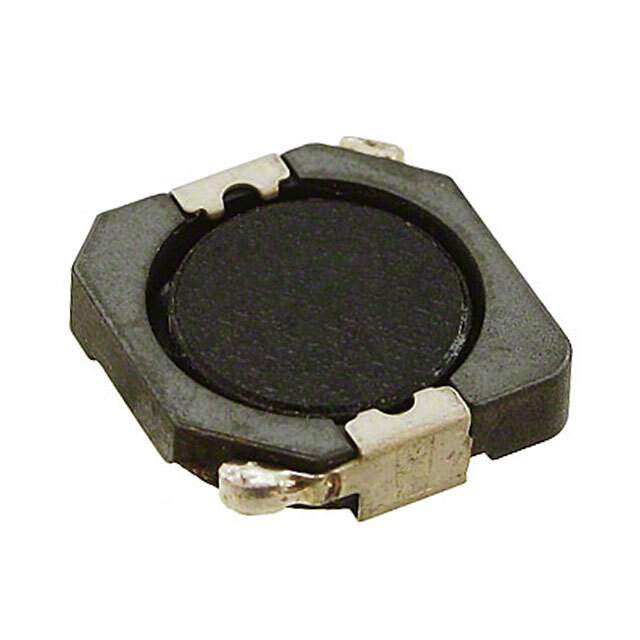

7447713100 Real Image
Same model may have multiple batches, images only for reference.

7447713100

Part No 7447713100
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 10UH 2.6A 62 MOHM SMD
Datasheet
7447713100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD Performance
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 2.6 A
Current - Saturation (Isat) 4.1A
Shielding Shielded
DC Resistance (DCR) 62mOhm Max
Frequency - Self Resonant 25MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.118" (3.00mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857541-7447713100
Ultra Librarian 3D Model Ultra Librarian 7447713100 CAD Model

Description

The WE-PD Performance series from Wurth Electronics Inc offers high-quality fixed inductors designed for various electronic applications.

  • Series: WE-PD Performance
  • Construction: Drum core, wirewound
  • Shielding: Shielded
  • Size: 0.394" L x 0.394" W (10.00mm x 10.00mm)
  • Height: 0.118" (3.00mm) max seated
  • Inductance: 10 µH
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 125°C
  • Ratings: AEC-Q200
  • Current Rating: 2.6 A
  • DC Resistance: 62mOhm max
  • Package: Nonstandard
  • Packaging: Tape & Reel
  • Standard Package: 1,000 pcs
