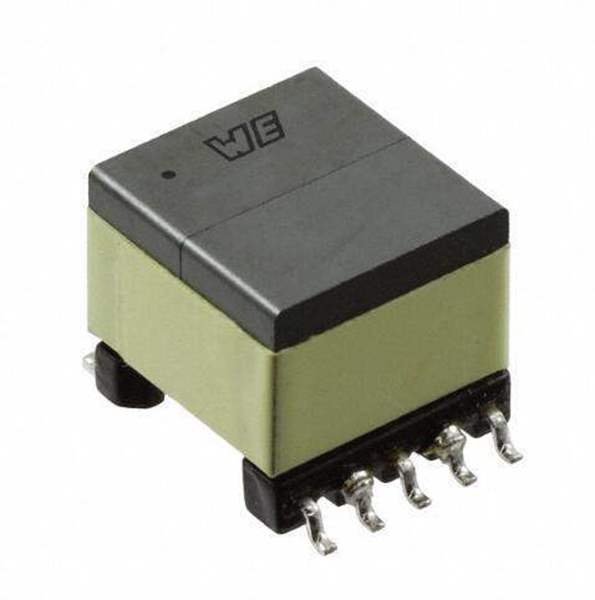

750315835Würth Elektronik
Same model may have multiple batches, images only for reference.

750315835

Part No 750315835
Manufacturer Wurth Electronics Inc
Catalog Switching Converter, SMPS Transformers
Description XFMR FLYBACK DC/DC CONV 40UH SMD
Datasheet
750315835 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Würth Elektronik
Product Status Active
Type For DC/DC Converters
Applications Flyback Converters
Intended Chipset LT8304
Chipset Manufacturer Linear Technology
Voltage - Primary 36 ~ 75V
Voltage - Isolation 1500Vrms
Frequency 50 ~ 200kHz
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Height - Seated (Max) 0.500" (12.70mm)
Win Source Part Number WS1210730-750315835
Ultra Librarian 3D Model Ultra Librarian 750315835 CAD Model

Description

Flyback Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 50 ~ 200kHz Surface Mount
