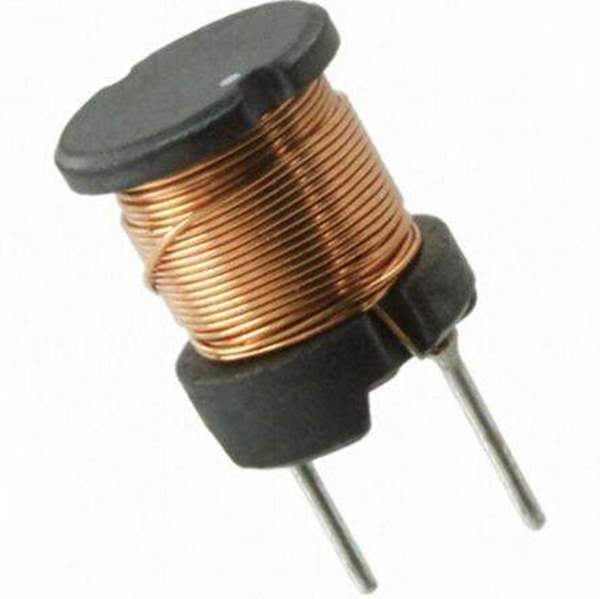

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Würth Elektronik
Category Inductors, Coils, Chokes Fixed Inductors
Package Tray
Product Status Active
Type Drum Core, Wirewound
Inductance 680 µH
Tolerance ±10%
Current Rating (Amps) 520 mA
Current - Saturation (Isat) 760mA
Shielding Unshielded
Win Source Part Number WS1210828-768772681
Ultra Librarian 3D Model Ultra Librarian 768772681 CAD Model

Description

680 µH Unshielded Drum Core, Wirewound Inductor 520 mA 1.68Ohm Max Radial, Vertical Cylinder (Open)
