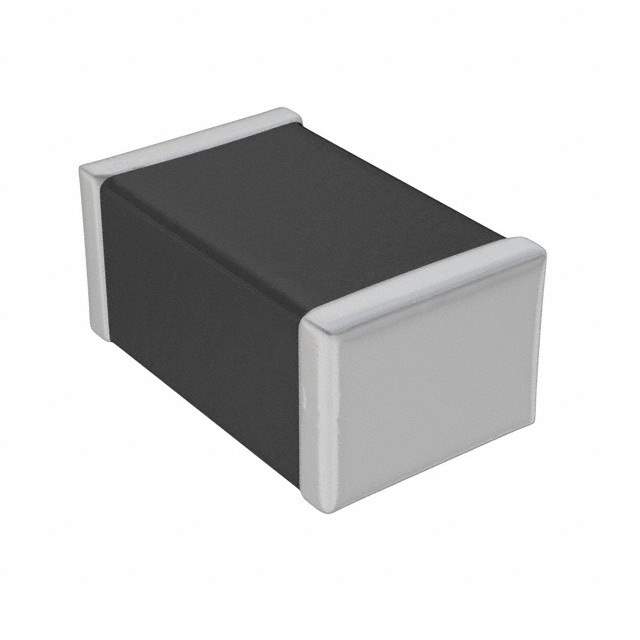

782851202 Real Image
Same model may have multiple batches, images only for reference.

782851202

Part No 782851202
Manufacturer Wurth Electronics Inc
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 2.2 KOHM 0805 1LN / 2.2 kOhms @ 100 MHz 1 Signal Line Ferrite Bead 0805 (2012 Metric) 200mA 450mOhm
Datasheet
782851202 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Manufacturer Würth Elektronik
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 2.2 kOhms @ 100 MHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 450mOhm
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Case / Package 0805 (2012 Metric)
Mounting Surface Mount
Height (Max) 0.043" (1.10mm)
Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 732-6705-6,732-6705-2,732-6705-1
Standard Package 4,000
Win Source Part Number 1328142-782851202
Ultra Librarian 3D Model Ultra Librarian 782851202 CAD Model

Description

The Würth Elektronik ferrite beads and chips are high-quality filters that are ideal for use in various electronic applications.

  • Filtering Type: Signal Line
  • Impedance: 2.2 kOhms @ 100 MHz
  • DC Resistance: 450mOhm
  • Current Rating (Max): 200mA
  • Packaging: Reel
  • Temperature Range: -55°C to 125°C
  • AEC-Q200: Rated
  • Applications: Automotive applications, power supplies, and various other electronic circuits
