Same model may have multiple batches, images only for reference.

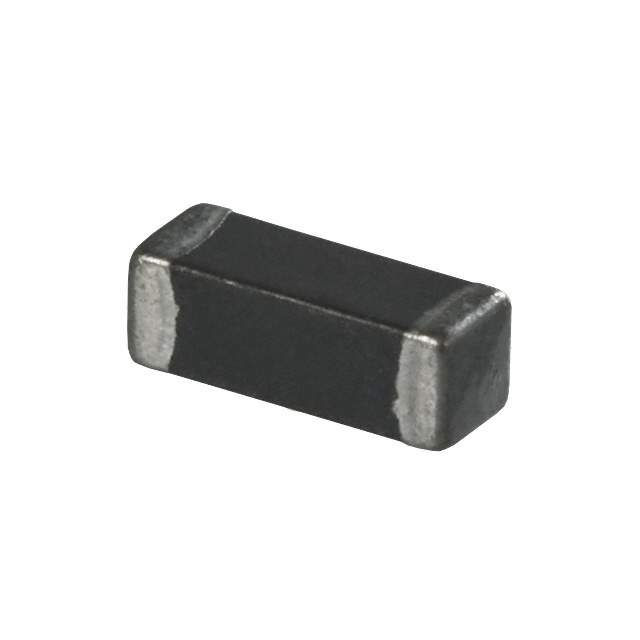

LI1806E101R-10 Real Image
Same model may have multiple batches, images only for reference.

LI1806E101R-10

Part No LI1806E101R-10
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 100 OHM 1806 1LN / Ferrite Beads Power Chip 100Ohm 25% 100MHz 0.5A 0.3Ohm DCR 1806 T/R
Datasheet
LI1806E101R-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Series LI
Packaging Reel package
Filter Type Power, Signal Line
Number of Lines 1
Impedance @ Frequency 100 Ohm @ 100MHz
Current Rating (Maximum) 500mA
DC Resistance (DCR) (Maximum) 300 mOhm
Operating Temperature Range -40°C ~ 125°C
Package 1806 (4516 Metric)
Mounting SMD
Height (Maximum) 0.073" (1.85mm)
Dimension 0.177" L x 0.063" W (4.50mm x 1.60mm)
Win Source Part Number 778609-LI1806E101R-10
Popularity Medium
Supply and Demand Status Balance
Family Name LI
Introduction Date April 10, 2006
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian LI1806E101R-10 CAD Model

Description

The Laird-Signal Integrity Products LI series filter is a power and signal line filter from Laird-Signal Integrity Products.

  • Package: Reel
  • Impedance: 100 Ohm @ 100MHz
  • Maximum DC Resistance (DCR): 300 mOhm
  • Operating Temperature Range: -40°C to 125°C
  • Current Rating: 500mA
  • Applications: Electronic components
