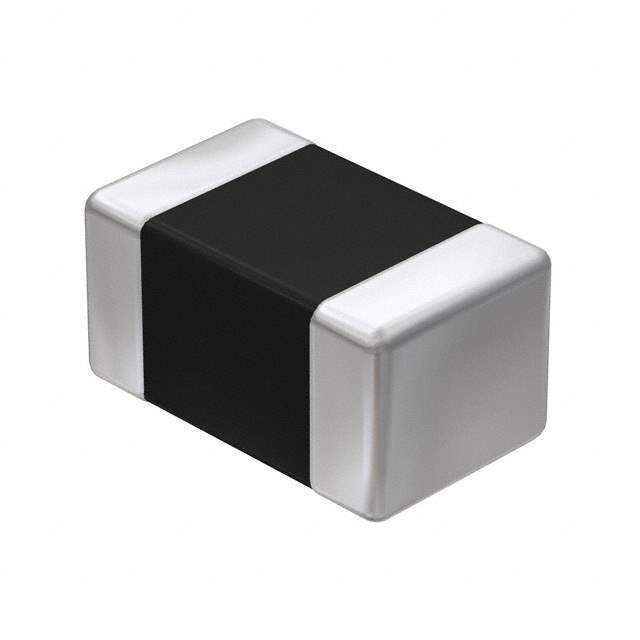

The BK1005HS102TV is a small, high-performance ferrite bead from Taiyo Yuden, designed to suppress noise in electronic circuits. These beads are widely used in various electronic devices to prevent electromagnetic interference (EMI) and ensure stable operation. They are particularly effective at filtering out high-frequency noise.

Applications

• Mobile Phones: Noise suppression in power lines and signal lines.
• Digital Cameras: EMI filtering in camera circuits.
• Computers and Peripherals: Noise reduction in USB, HDMI, and other interfaces.
• Audio Equipment: Filtering noise in audio signals for clearer sound.
• Automotive Electronics: Noise suppression in various automotive systems.
• Wireless Communication Devices: Noise filtering in RF circuits.

Features

• Small Size: 1005 (1.0 x 0.5 mm) form factor for space-saving designs.
• High Impedance: Provides effective noise suppression at high frequencies.
• Low DC Resistance: Minimizes power loss and voltage drop.
• High Current Capacity: Can handle significant current without saturation.
• Multilayer Structure: Enhances impedance characteristics.
• Excellent Reliability: Designed for stable performance over a wide temperature range.

Benefits

• Effective Noise Suppression: Reduces EMI and improves signal integrity.
• Compact Design: Saves valuable board space in densely populated circuits.
• Minimal Signal Distortion: Low DC resistance ensures minimal impact on signal quality.
• Stable Performance: Reliable operation in various environmental conditions.
• Improved System Reliability: Prevents malfunctions caused by electromagnetic interference.

Additional Details

The BK1005HS102TV ferrite bead has an impedance of 1000 ohms at 100 MHz, making it highly effective at suppressing high-frequency noise. Its low DC resistance of typically less than 0.2 ohms ensures minimal power loss. The component is designed for reflow soldering and is RoHS compliant. The BK series of ferrite beads from Taiyo Yuden is known for its quality and reliability, making it a popular choice for noise suppression in a wide variety of electronic applications.
