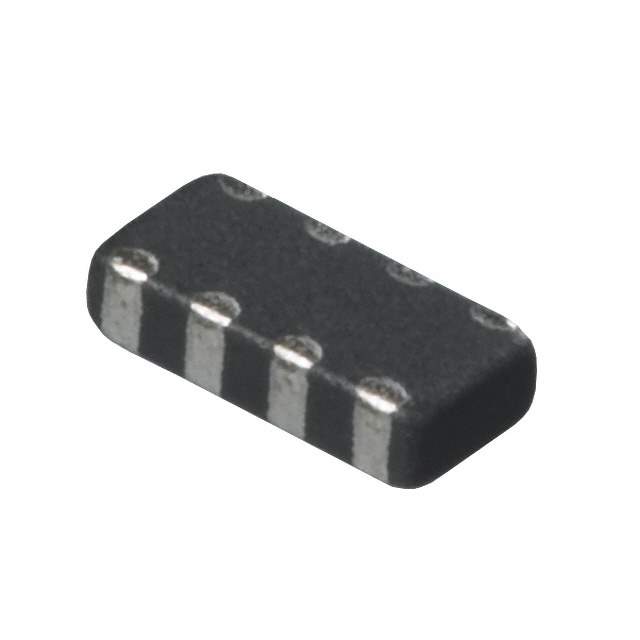

The BLA31AG102SN4 is a ferrite bead from Murata Electronics. This component is designed to suppress noise in electronic circuits, particularly in high-frequency applications. Its physical characteristics make it suitable for surface-mount technology (SMT) assembly, commonly used in modern electronic devices.

Applications:

• Mobile Phones: Used for noise suppression in various circuits to improve signal quality.
• Wireless Communication Devices: Helps reduce interference in wireless modules and systems.
• Digital Cameras: Implemented to minimize noise affecting image sensors and signal processing.
• Audio Equipment: Integrated to filter noise and improve audio clarity.
• Automotive Electronics: Used in car electronics to suppress electromagnetic interference (EMI).

Features:

• Surface Mount Device (SMD): Designed for automated assembly processes.
• Compact Size: 1206 case size (3.2mm x 1.6mm).
• High Impedance: Provides effective noise filtering at the desired frequency (1000 ohms @ 100MHz).
• Low DC Resistance: Minimizes power loss in the circuit.
• RoHS Compliant: Compliant with Restriction of Hazardous Substances Directive.

Benefits:

• Effective Noise Suppression: Reduces unwanted noise and interference, enhancing signal integrity.
• Easy Integration: Can be easily integrated into existing circuits using standard SMT techniques.
• Improved Reliability: Helps protect sensitive components from noise-related issues.
• Stable Performance: Offers consistent performance over a wide range of operating conditions.

Additional Details:

The BLA31AG102SN4 has a DC resistance of 1.5 ohms (typical) and a rated current of 100mA. It's ideal for use in power line filtering and signal line filtering applications where noise suppression is critical. The component's operating temperature range typically spans from -55°C to +125°C.
