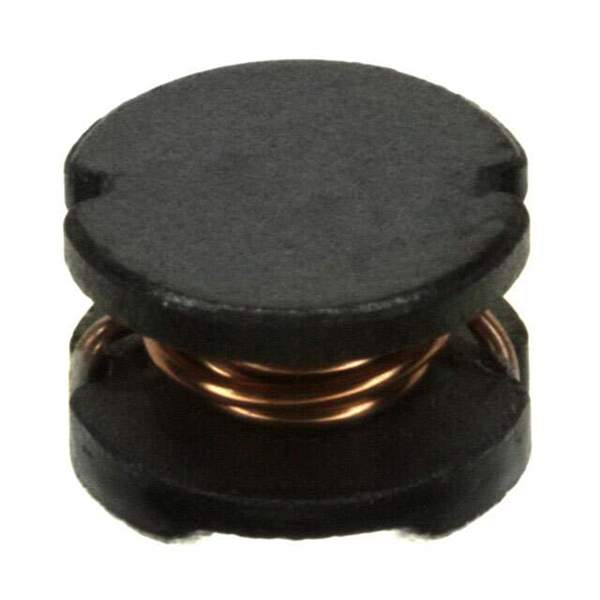

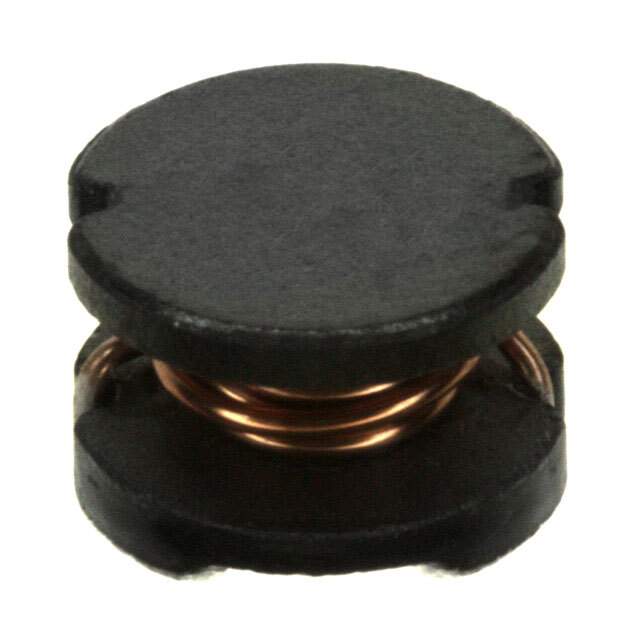

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Inductors
Estimated Pruduction Lead Time 51 Weeks
Features 33 µH Unshielded Wirewound Inductor 1.78 A 120mOhm Max Nonstandard
Manufacturer Wurth Electronics Inc
Series WE-PD2A
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package Nonstandard
Case / Package 1054
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-6887-6, 732-6887-2, 732-6887-1
Quantity per package 500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 858242-784776133
Ultra Librarian 3D Model Ultra Librarian 784776133 CAD Model

Description

The 858242-784776133 is a WE-PD2A series unshielded wirewound inductor from Wurth Electronics Inc.

  • Inductance: 33 µH
  • Maximum DC Resistance: 120 mOhm
  • Maximum Current Rating: 1.78 A
  • Package: Nonstandard
  • Supplier Device Package: 1054
  • Operating Temperature Range: -40°C to 125°C
  • Packaging: Reel - TR
  • Quantity per Package: 500
  • Estimated Production Lead Time: 51 weeks
  • ROHS3 Compliant: Yes
  • REACH Unaffected: Yes
  • MSL Level: 1 (unlimited)
