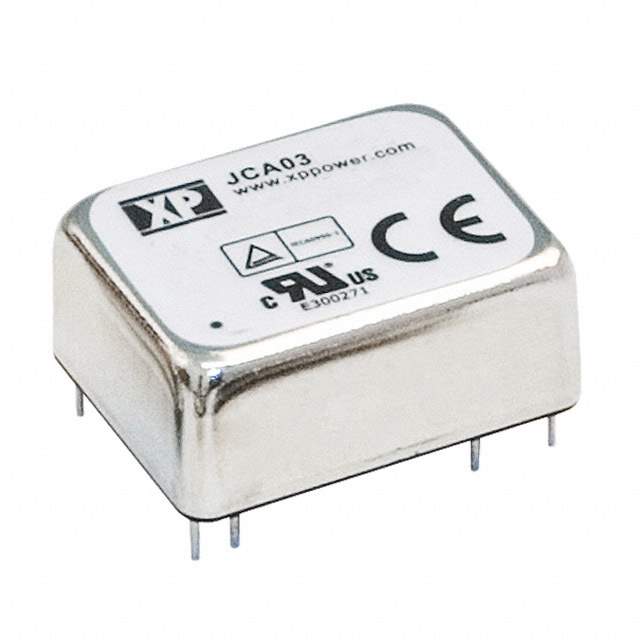

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer XP Power
Series JCA
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 36V
Voltage Input MAX 75V
Voltage - Output 1 3.3V
Current - Output (Maximum) 910mA
Power (Watts) 3W
Voltage - Isolation 1.5kV (1500V)
Applications ITE (Commercial)
Features OCP, OVP, SCP, UVLO
Operating Temperature Range -40°C ~ 100°C
Efficiency 73%
Mounting Style Through Hole
Package 24-DIP Module, 7 Leads
Dimension 1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm)
Win Source Part Number 766585-JCA0348S03
Popularity Medium
Supply and Demand Status Limited
Family Name JCA0348S03
Introduction Date June 11, 2007
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian JCA0348S03 CAD Model

Description

The XP Power JCA0348S03 is an isolated module electronic component manufactured by XP Power.

  • Supply and Demand Status: Limited
  • Features: OCP, OVP, SCP, UVLO
  • Efficiency: 73 percent
  • Power Output: 3W
  • Input Voltage: 36V to 75V
  • Voltage Isolation: 1.5kV
  • Current Output: 910mA
  • Applications: ITE (Commercial)
