Same model may have multiple batches, images only for reference.

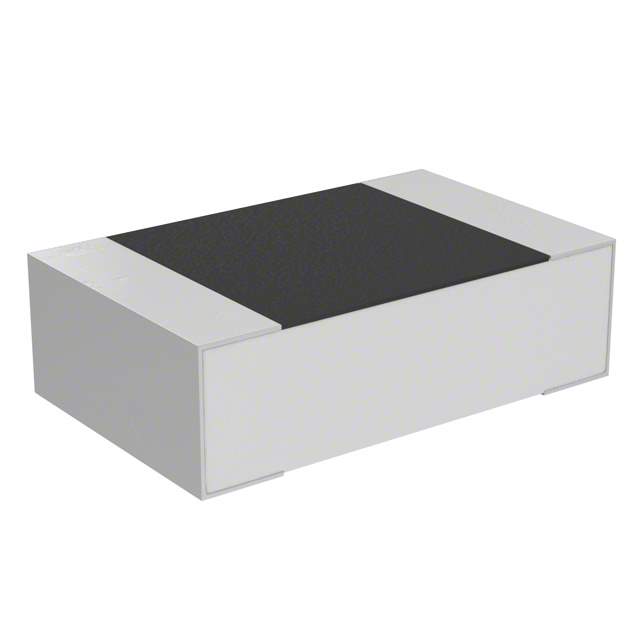

PF0805FRM7W0R01L Real Image
Same model may have multiple batches, images only for reference.

PF0805FRM7W0R01L

Part No PF0805FRM7W0R01L
Manufacturer Yageo
Catalog Chip Resistor - Surface Mount
Description RES 0.01 OHM 1% 1/4W 0805
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 23 Weeks
Features 10 mOhms ±1% 0.25W, 1/4W Chip Resistor 0805 (2012 Metric) Current Sense, Moisture Resistant Metal Foil
Manufacturer Yageo
Series PF
Package Reel - TR
Operating Temperature Range -55°C ~ 155°C
Package 0805 (2012 Metric)
Case / Package 0805
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 0.01NUCT, 0.01NUTR, 0.01NUDKR, 0.01NUTR-ND, 311-0.01NUCT, 0.01NUCT-ND, 311-0.01NUTR, 311-0.01NUDKR, 0.01NUDKR-ND
Quantity per package 4000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 930295-PF0805FRM7W0R01L
Ultra Librarian 3D Model Ultra Librarian PF0805FRM7W0R01L CAD Model

Description

The PF0805FRM7W0R01L is a product of Yageo.

  • Popularity: Highly Popular
  • Supply and Demand Status: Balance
  • Win Source Part Number: 930295
  • Component Type: 1/4W Chip Resistor
  • Resistance: 10 mOhms ±1%
  • Feature: Moisture-Resistant Metal Foil
  • Operating Temperature: -55°C to 155°C
  • Package/Case: 0805 (2012 Metric)
  • Height: Not Specified
  • Package Type: Reel-TR
  • Standard Package: 4,000 pieces
  • MSL Level: 1 (unlimited)
  • HTSUS: 8533.21.0030
  • Other Part Numbers: 0.01NUCT, 0.01NUTR, 0.01NUDKR, 0.01NUTR-ND, 311-0.01NUCT, 0.01NUCT-ND, 311-0.01NUTR, 311-0.01NUDKR, 0.01NUDKR-ND
