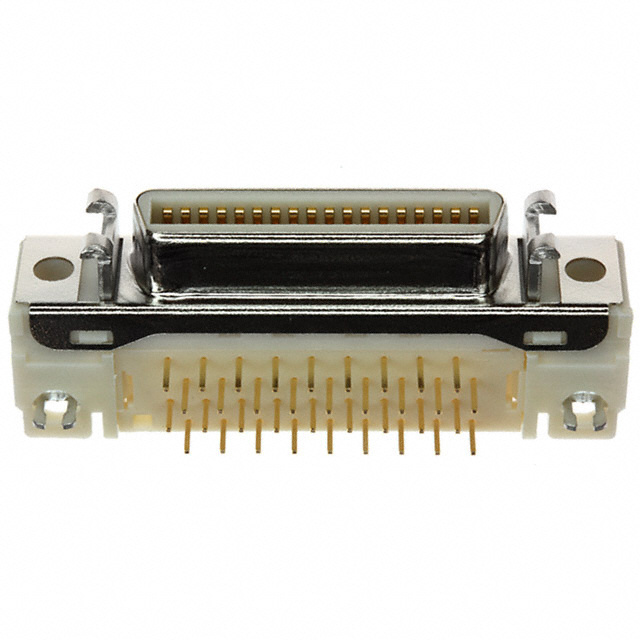

10220-55H3PC 3M – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

10220-55H3PC

Part No 10220-55H3PC
Manufacturer 3M
Catalog D - Shaped Connectors - Centronics
Description CONN RCPT 20POS R/A SOLDER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 20
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Flange Feature Housing/Shell (4-40); Latchblocks
Features Board Lock, Shielded
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1623119-10220-55H3PC
Ultra Librarian 3D Model Ultra Librarian 10220-55H3PC CAD Model

Description

N
