Part No 228-1277-00-0602J
Manufacturer 3M
Catalog Sockets for ICs, Transistors

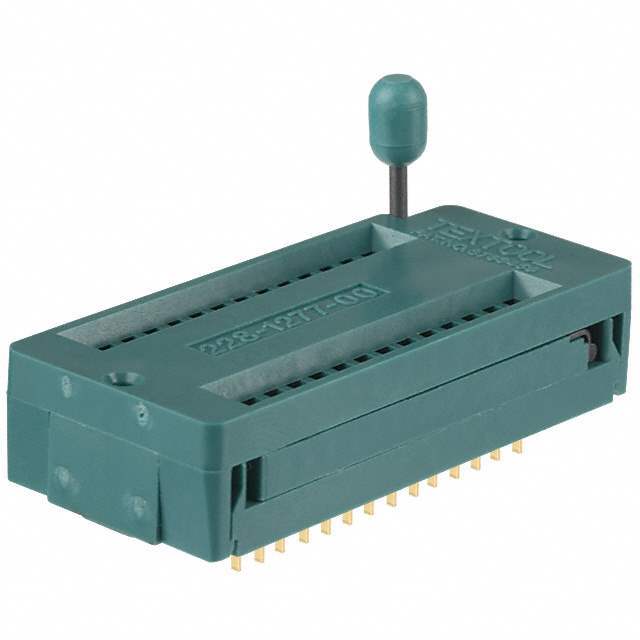

Description CONN IC DIP SOCKET ZIF 28POS GLD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1209169-228-1277-00-0602J
Manufacturer 3M
Category Connectors, Interconnects -Sockets for ICs, Transistors IC Sockets
Package Tube
Product Status Active
Type DIP, ZIF (ZIP), 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) 28 (2 x 14)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Material - Mating Beryllium Copper
Ultra Librarian 3D Model Ultra Librarian 228-1277-00-0602J CAD Model

Description

• For DIP's with .100" (2.54 mm) lead spacing
• Extra wide contact zone allows insertion of DIP's with distance between rows from .300" (7.62 mm) through .600" (15.24 mm)
• Lever actuated zero insertion force mechanism
• Socket contact point of .090" (2.29 mm) below top surface of socket
