Same model may have multiple batches, images only for reference.

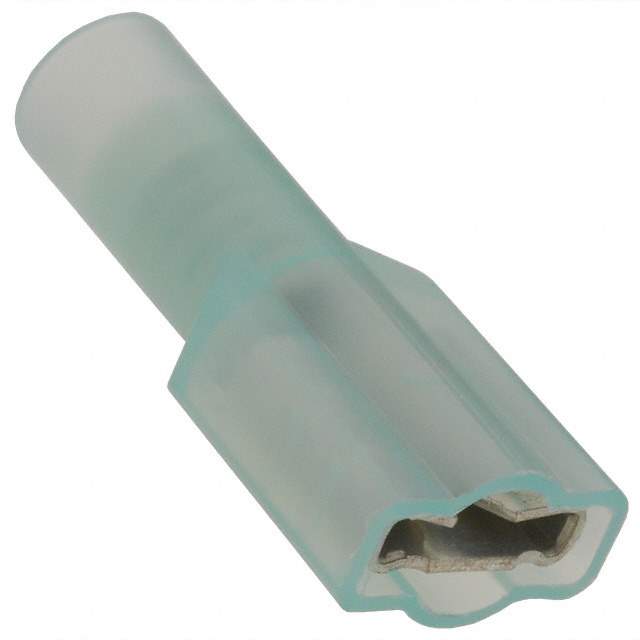

94820 Real Image
Same model may have multiple batches, images only for reference.

94820

Part No 94820
Manufacturer 3M
Catalog Terminals
Description 80611253313 94831 73F-250-32-NBL Nylon Disconnect Economy 50/BAG 1399365
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Blue
Contact Material Brass
Contact Plating Tin
Gender Female
Insulation Fully Insulated
Insulation Diameter 3.683 mm
Insulation Material Nylon
Lead Free Lead Free
Length 22.098 mm
Material Brass
Mount Free Hanging
Orientation Straight
Packaging Bulk
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536904000
Tab Thickness 812.8 µm
Tab Width 6.35 mm
Terminal Material Brass
Termination Crimp
Weight 1.000001 g
Width 6.35 mm
Wire/Cable Gauge -14 AWG
Wire Gauge (Max) 16 AWG
Wire Gauge (Min) 14 AWG
Win Source Part Number 1151503-94820
Categories Terminals
Manufacturer 3M
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 94820 CAD Model

Description

This 3M female crimp terminal is a high-quality brass contact material connector that comes in a blue color.

  • Contact Material: Brass
  • Color: Blue
  • Termination: Crimp
  • Contact Plating: Tin
  • Length: 22.098 mm
  • Weight: 1.000001 g
  • Insulation Material: Nylon
  • Insulation: Fully Insulated
  • Tab Width: 6.35 mm
  • Tab Thickness: 812.8 µm
  • Mounting Type: Free Hanging
  • Wire/Cable Gauge: -14 AWG
  • RoHS Compliant: Yes
  • Lead-Free: Yes
