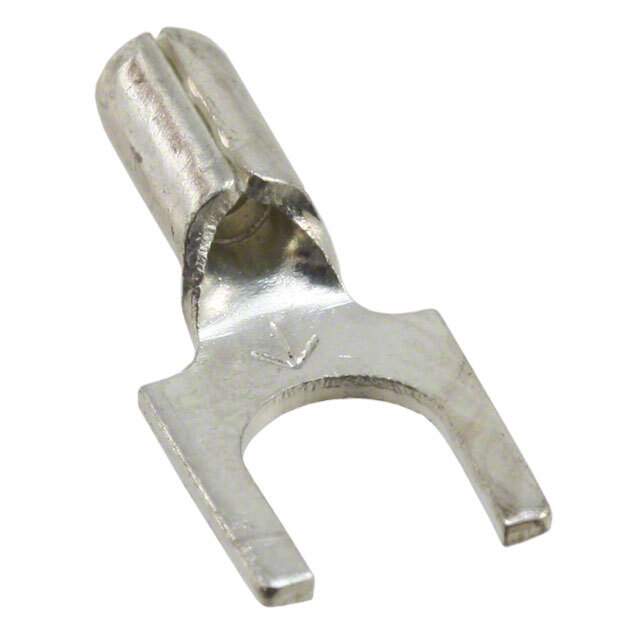

MU18-10FBK Real Image
Same model may have multiple batches, images only for reference.

MU18-10FBK

Part No MU18-10FBK
Manufacturer 3M
Catalog Terminals
Description CONN SPADE TERM 18-22AWG #10  /  10 Stud Spade Terminal Connector Crimp 18-22 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Spade Connectors
Mfr 3M
Series Scotchlok™
Package Bulk
Terminal Type Standard
Stud/Tab Size 10 Stud
Width - Outer Edges 0.300" (7.62mm)
Length - Overall 0.650" (16.50mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Insulated
Features Butted Seam
Contact Finish Tin
Contact Material Copper
Length - Ring Center to Termination 0.250" (6.35mm)
Length - Termination 0.250" (6.35mm)
Base Product Number MU18
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Other Names 054007-01201,MU1810FBK,80-6100-3819-4,80610038194,MU18-10FBK (BULK),54007012016,7100163947,00054007012016,920020-09,5400701201,05400701201
Standard Package 1,000
Win Source Part Number 1187560-MU18-10FBK
Ultra Librarian 3D Model Ultra Librarian MU18-10FBK CAD Model

Description

The Scotchlok™ MU18-10FBK is a terminal spade connector that is designed for use with 18-22 AWG wire gauge. This product is non-insulated and has a butted seam feature.

  • Termination: Crimp
  • Contact Finish: Tin
  • Package: Bulk
  • Standard Package: 1,000
