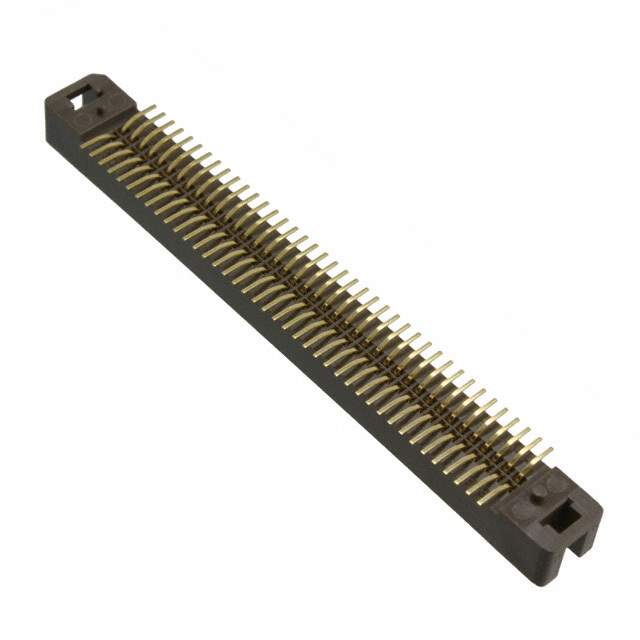

Same model may have multiple batches, images only for reference.

P50LE-080P1-SML-DA

Name: P50LE-080P1-SML-DA
Brand: 3M
SKU: 1339145
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	P50LE-080P1-SML-DA
Manufacturer	3M
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 80POS 1.27MM / Connector Header Surface Mount 80 position 0.050" (1.27mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	3M
Series	Pak 50, P50LE
Package	Bulk
Connector Type	Plug
Contact Type	Center Strip Contact
Pitch - Mating	0.050" (1.27mm)
Number of Positions	80
Number of Rows	2
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Latch Holder
Insulation Height	0.197" (5.00mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Polyphenylene Sulfide (PPS) , Glass Filled
Features	Board Guide
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Brown
Current Rating (Amps)	0.5A
Contact Finish Thickness - Post	Flash
Base Product Number	P50LE
Standard Package	200
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1339145-P50LE-080P1-SML-DA
Ultra Librarian 3D Model	Ultra Librarian P50LE-080P1-SML-DA CAD Model

Alternative Products

Description

This P50LE series plug connector is a male pin type connector with 80 positions loaded in two rows.

Connector Type: Plug, Male Pins
Number of Positions: 80
Number of Rows: 2
All Positions Loaded: Yes
Features: Board Guide
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: Flash
Contact Finish - Post: Gold
Contact Finish Thickness - Post: Flash
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Insulation Color: Brown
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.197" (5.00mm)
Operating Temperature: -55°C ~ 85°C
Current Rating: 0.5A
