Same model may have multiple batches, images only for reference.

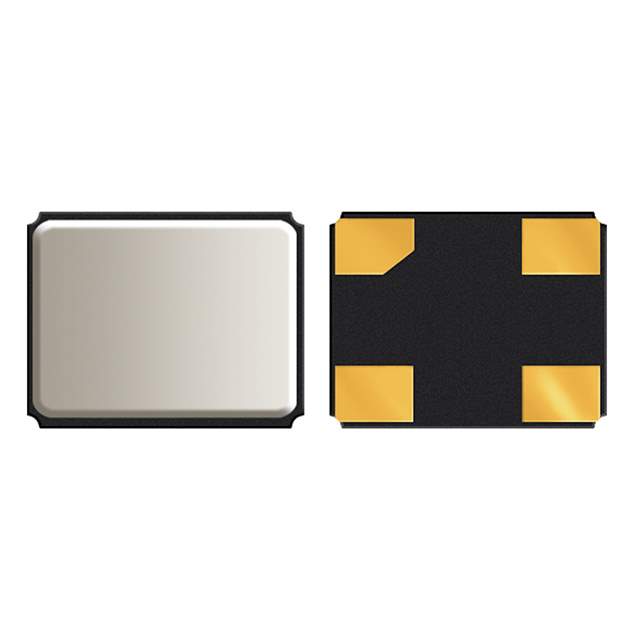

ABM10-167-12.000MHZ-T3 Real Image
Same model may have multiple batches, images only for reference.

ABM10-167-12.000MHZ-T3

Part No ABM10-167-12.000MHZ-T3
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 12.0000MHZ 8PF SMD / 12 MHz ±10ppm Crystal 8pF 125 Ohms 4-SMD, No Lead
Datasheet
ABM10-167-12.000MHZ-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM10
Package Tape & Reel
Type MHz Crystal
Frequency 12 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±10ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 125 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.028" (0.70mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 535-13521-6,535-13521-2,535-13521-1
Standard Package 3,000
Win Source Part Number 1175124-ABM10-167-12.000MHZ-T3
Ultra Librarian 3D Model Ultra Librarian ABM10-167-12.000MHZ-T3 CAD Model

Description

This ABM10 series MHz crystal electronic component has a frequency of 12 MHz and a frequency stability of ±30ppm.

  • Package: Tape and Reel
  • Mounting Style: SMD (SMT)
  • Package/Case: 4-SMD, No Lead
  • ESR (Equivalent Series Resistance): 125 Ohms
  • Frequency Tolerance: ±10ppm
  • Operating Mode: Fundamental
  • Load Capacitance: 8pF
  • Temperature Range: -40°C to 85°C
  • Dimensions: 0.098" L x 0.079" W (2.50mm x 2.00mm)
