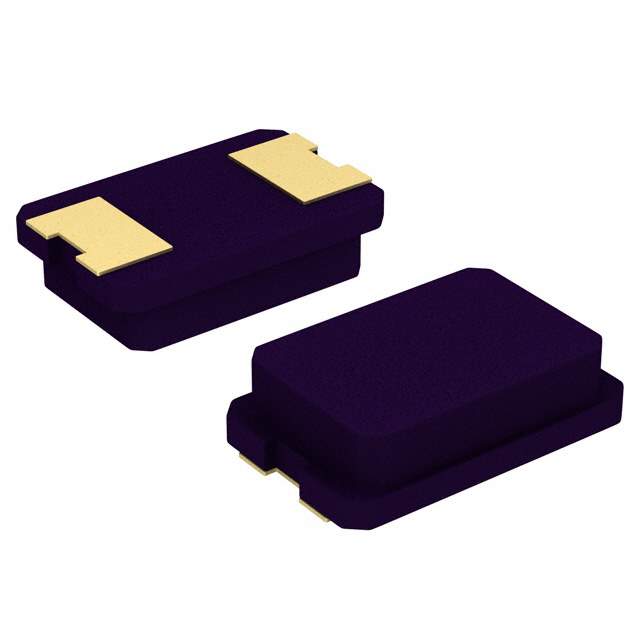

ABM3-24.000MHZ-D2Y-T Real Image
Same model may have multiple batches, images only for reference.

ABM3-24.000MHZ-D2Y-T

Part No ABM3-24.000MHZ-D2Y-T
Manufacturer Abracon LLC
Catalog Oscillators
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM3
Package Tape & Reel
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 30 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.051" (1.30mm)
Other Names 535-10643-2,535-10643-1,ABM324000MHZD2YT,535-10643-6
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1285019-ABM3-24.000MHZ-D2Y-T
Ultra Librarian 3D Model Ultra Librarian ABM3-24.000MHZ-D2Y-T CAD Model

Description

The ABM3-24.000MHZ-D2Y-T electronic component is a MHz crystal that belongs to the crystals category.

  • Win Source Part Number: 1285019
  • Packaging: Tape and Reel
  • Frequency: 24MHz
  • Temperature Range: -40°C to 85°C
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 18pF
  • ESR (Equivalent Series Resistance): 30 Ohms
