Same model may have multiple batches, images only for reference.

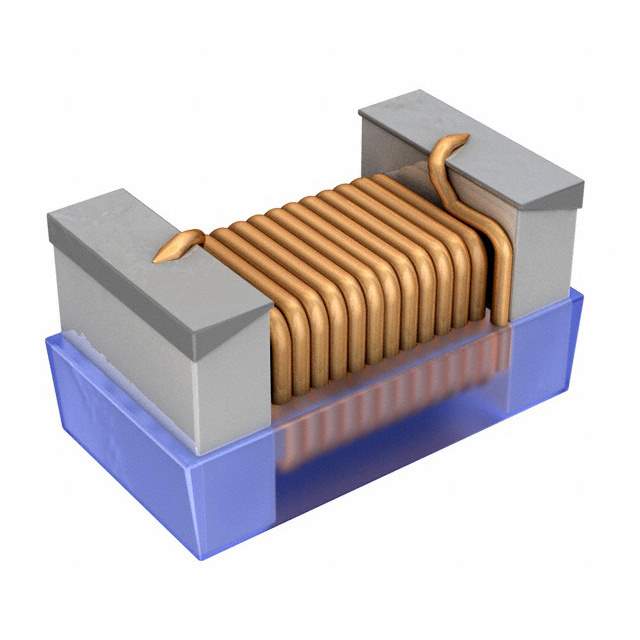

AISC-0603F-R47J-T Real Image
Same model may have multiple batches, images only for reference.

AISC-0603F-R47J-T

Part No AISC-0603F-R47J-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 470NH 470MA 370MOHM SM / 470 nH Unshielded Drum Core, Wirewound Inductor 470 mA 370mOhm Max 0603 (1608 Metric)
Datasheet
AISC-0603F-R47J-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series AISC-0603F
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 nH
Tolerance ±5%
Current Rating (Amps) 470 mA
Shielding Unshielded
DC Resistance (DCR) 370mOhm Max
Frequency - Self Resonant 670MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 7.9 MHz
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Dimension 0.063" L x 0.039" W (1.60mm x 1.00mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names -535-12525-1,-AISC-0603F-R47J-TCT-ND,-535-12525-2,535-12525-1,535-12525-2,535-AISC-0603F-R47J-TCT,-AISC-0603F-R47J-TTR,AISC-0603F-R47J-T-ND,535-AISC-0603F-R47J-TDKR,535-12525-2-ND,535-AISC-0603F-R47J-TTR,-AISC-0603F-R47J-TCT,-AISC-0603F-R47J-TTR-ND,535-12525-1-ND
Standard Package 3,000
Win Source Part Number 1133493-AISC-0603F-R47J-T
Ultra Librarian 3D Model Ultra Librarian AISC-0603F-R47J-T CAD Model

Description

The Abracon LLC fixed inductor with a win source part number of 1133493-AISC-0603F-R47J-T has a drum core, wirewound type.

  • Shielding: unshielded
  • Inductance: 470 nH
  • Tolerance: ±5%
  • DC Resistance (DCR): 370mOhm Max.
  • Package: tape and reel
  • Standard Package: 3,000
  • Mounting: SMD (SMT) technology
  • Operating Temperature: -40°C ~ 85°C
  • Frequency Self-Resonant: 670MHz
