Same model may have multiple batches, images only for reference.

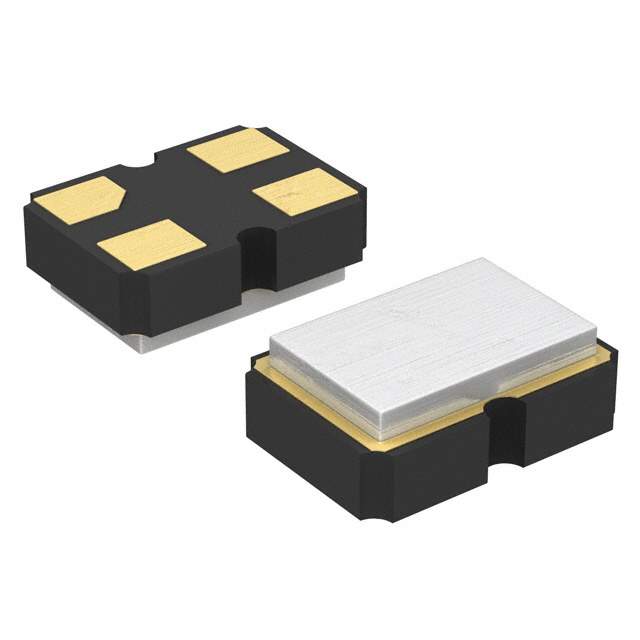

ASD-24.000MHZ-LC-T Real Image
Same model may have multiple batches, images only for reference.

ASD-24.000MHZ-LC-T

Part No ASD-24.000MHZ-LC-T
Manufacturer Abracon LLC
Catalog Oscillators
Datasheet
ASD-24.000MHZ-LC-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASD
Package Tape & Reel (TR)
Base Resonator Crystal
Type XO (Standard)
Frequency 24 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 7mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Current - Supply (Disable) (Max) 20µA
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1284974-ASD-24.000MHZ-LC-T
Ultra Librarian 3D Model Ultra Librarian ASD-24.000MHZ-LC-T CAD Model

Description

The ASD-24.000MHZ-LC-T is a standard XO oscillator with a frequency of 24 MHz.

  • Frequency Stability: ±50ppm
  • Mounting: SMD (SMT) technology
  • Function: Enable/Disable
  • Output: HCMOS
  • Current Supply (max): 7mA
  • Current Supply (disable) (max): 20µA
  • Voltage Supply: 3.3V
  • Temperature Range: -40°C ~ 85°C
  • Dimensions: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Ideal for: Use in applications such as microcontrollers, digital signal processors, and wireless communication systems.
