Same model may have multiple batches, images only for reference.

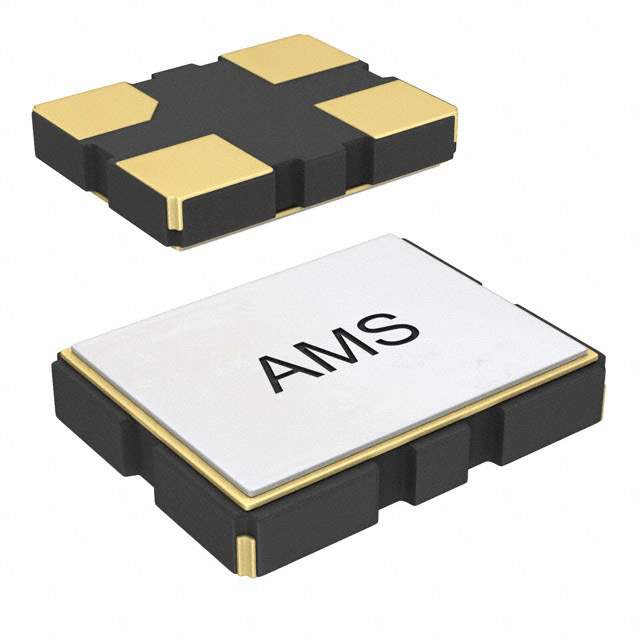

ASE-25.000MHZ-LR-T Real Image
Same model may have multiple batches, images only for reference.

ASE-25.000MHZ-LR-T

Part No ASE-25.000MHZ-LR-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 25.0000MHZ CMOS SMD / 25 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Manufacturer Abracon LLC
Packaging Reel - TR
Base Resonator Crystal
Type XO (Standard)
Frequency 25 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 13mA
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
Current - Supply (Disable) (Max) 10µA
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number ASE-25.000MHZ-L-R-T,535-13429-1,ASE-25.000MHZ-LR-T-ND,535-13429-6,Q11576297,535-13429-2
Standard Package 1,000
Win Source Part Number 1330443-ASE-25.000MHZ-LR-T
Ultra Librarian 3D Model Ultra Librarian ASE-25.000MHZ-LR-T CAD Model

Description

The Abracon LLC 1330443-ASE-25.000MHZ-LR-T is a surface mount XO (Standard) with a frequency of 25 MHz and a frequency stability of ±25ppm.

  • Output: CMOS
  • Current Supply: 13mA (max) and 10μA (max) when disabled
  • Voltage Supply: 3.3V
  • Operating Temperature: -40°C to 85°C
  • Package: 4-SMD, No Lead
  • APR: Not specified
  • Compliance: ROHS3 compliant and REACH unaffected
  • Popularity: Widely used
