Same model may have multiple batches, images only for reference.

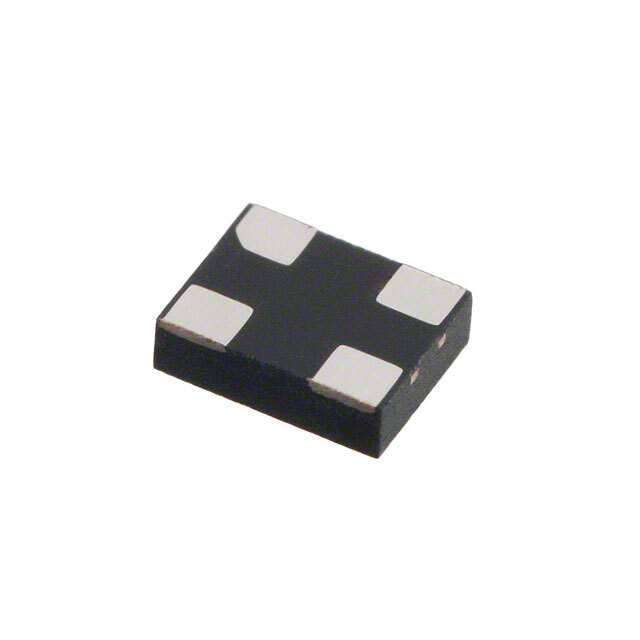

ASEMB-125.000MHZ-LY-T Real Image
Same model may have multiple batches, images only for reference.

ASEMB-125.000MHZ-LY-T

Part No ASEMB-125.000MHZ-LY-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 125.0000MHZ CMOS SMD / 125 MHz XO (Standard) CMOS Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-SMD, No Lead
Datasheet
ASEMB-125.000MHZ-LY-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Manufacturer Abracon LLC
Packaging Reel - TR
Base Resonator MEMS
Type XO (Standard)
Frequency 125 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.8V ~ 3.3V
Frequency Stability ±10ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 16mA
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 15µA
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number ASEMB125000MHZLYT,535-11085-6,535-11085-2,535-11085-1
Standard Package 1,000
Win Source Part Number 1328181-ASEMB-125.000MHZ-LY-T
Ultra Librarian 3D Model Ultra Librarian ASEMB-125.000MHZ-LY-T CAD Model

Description

The Abracon LLC 1328181-ASEMB-125.000MHZ-LY-T is a CMOS output XO (Standard) oscillator that has a frequency of 125MHz.

  • Manufacturer: Abracon LLC
  • Product Name: 1328181-ASEMB-125.000MHZ-LY-T
  • Output: CMOS
  • Oscillator Type: XO (Standard)
  • Frequency: 125MHz
  • Frequency Stability: ±10ppm
  • Current Supply: 16mA
  • Application: Standby (Power Down)
  • Mounting Technology: Surface Mount
  • Category: Crystals, Oscillators, and Resonators
