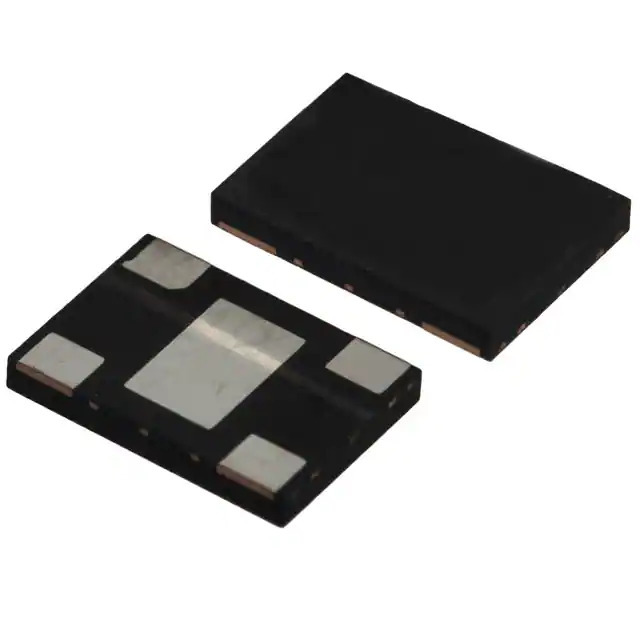

Same model may have multiple batches, images only for reference.
ASVMB-14.7456MHZ-XY-T Abracon LLC
Same model may have multiple batches, images only for reference.

ASVMB-14.7456MHZ-XY-T

Part No ASVMB-14.7456MHZ-XY-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 14.7456MHZ LVCMOS / 14.7456 MHz XO (Standard) LVCMOS Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-SMD, No Lead Exposed Pad
Datasheet
ASVMB-14.7456MHZ-XY-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASVMB, Pure Silicon™
Package Tape & Reel
Product Status Active
Base Resonator MEMS
Type XO (Standard)
Frequency 14.7456 MHz
Function Standby (Power Down)
Output LVCMOS
Voltage - Supply 1.8V ~ 3.3V
Frequency Stability ±10ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 105°C
Spread Spectrum Bandwidth -
Current - Supply (Max) 16mA
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead Exposed Pad
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 15µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1355500-ASVMB-14.7456MHZ-XY-T
Ultra Librarian 3D Model Ultra Librarian ASVMB-14.7456MHZ-XY-T CAD Model

Description

The Abracon LLC XO (Standard) (Part Number: 1355500-ASVMB-14.7456MHZ-XY-T) is a high-quality oscillator suitable for various electronic applications.

  • Manufacturer: Abracon LLC
  • Temperature Range: -40°C to 105°C
  • Series: ASVMB Pure Silicon™
  • Packaging: Tape and Reel
  • Product Status: Active
  • Frequency: 14.7456 MHz
  • Voltage Supply: Specified Range
  • Size: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Mounting Type: Surface Mount
  • HTSUS Code: 8542.39.0001
  • ECCN: EAR99
