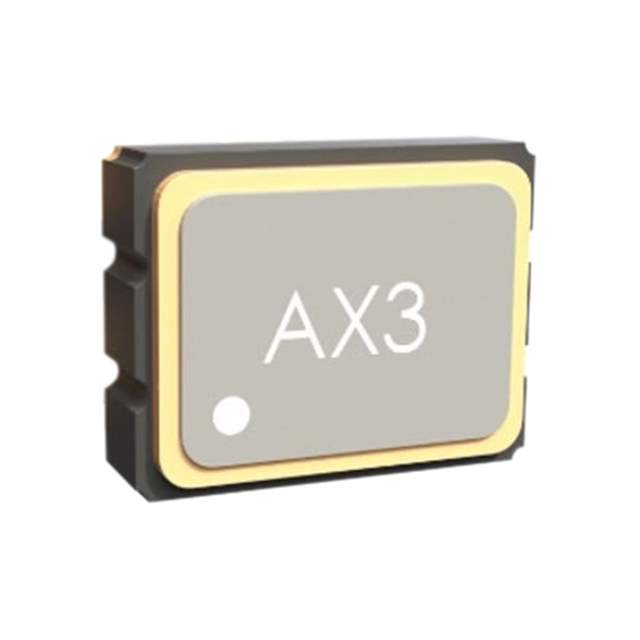

AX3DCF1-125.0000T3 Real Image
Same model may have multiple batches, images only for reference.

AX3DCF1-125.0000T3

Part No AX3DCF1-125.0000T3
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 125MHZ 1.8V LVDS / 125 MHz XO (Standard) LVDS Oscillator 1.8V Enable/Disable 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ClearClock™ AX3
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 125 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 1.8V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 27mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.043" (1.10mm)
Current - Supply (Disable) (Max) 10µA
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1336849-AX3DCF1-125.0000T3
Ultra Librarian 3D Model Ultra Librarian AX3DCF1-125.0000T3 CAD Model

Description

The ClearClock™ AX3 series XO oscillator from Abracon LLC is a surface mount component that comes in a tape and reel package.

  • Length: 0.126 inches
  • Width: 0.098 inches
  • Seated Height: 0.043 inches
  • Frequency: 125 MHz
  • Output: LVDS
  • Frequency Stability: ±25ppm
  • Supply Current (Max): 27mA
  • Voltage Supply: 1.8V
  • Operating Temperature: -40°C to 85°C
  • Application: High-speed communication
