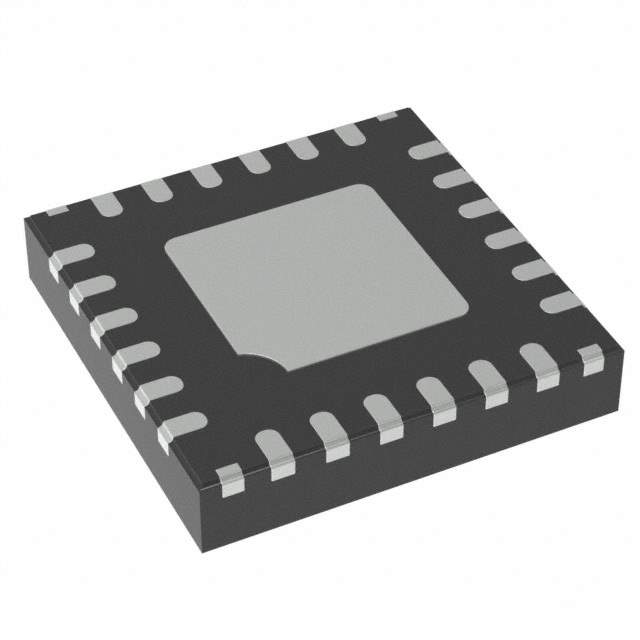

A80601KESJSR-1

Name: A80601KESJSR-1
Brand: Allegro MicroSystems, LLC
SKU: 1142804
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	A80601KESJSR-1
Manufacturer	Allegro MicroSystems, LLC
Catalog	PMIC - LED Drivers
Description	IC LED DRVR CTRL PWM 210MA 24QFN / LED Driver IC 4 Output DC DC Controller SEPIC, Step-Up (Boost) Analog, PWM Dimming 210mA 24-QFN (4x4)
Datasheet	A80601KESJSR-1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs)>PMIC - LED Drivers
Mfr	Allegro MicroSystems
Series	Automotive, AEC-Q100
Package	Tape & Reel
Type	DC DC Controller
Topology	SEPIC, Step-Up (Boost)
Internal Switch(s)	No
Number of Outputs	4
Voltage - Supply (Min)	4.5V
Voltage - Supply (Max)	40V
Voltage - Output	4.05V ~ 4.45V
Current - Output / Channel	210mA
Frequency	200kHz ~ 2.15MHz
Dimming	Analog, PWM
Applications	Automotive, Backlight
Temperature Range - Operating	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	24-WFQFN Exposed Pad
Supplier Device Package	24-QFN (4x4)
Base Product Number	A80601
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Other Names	620-2039-2,620-2039-1,620-2039-6
Standard Package	6,000
Win Source Part Number	1142804-A80601KESJSR-1
Ultra Librarian 3D Model	Ultra Librarian A80601KESJSR-1 CAD Model

Description

The A80601KESJSR-1 is a DC DC controller that belongs to the Integrated Circuits (ICs) category of electronic components and manufactured by Allegro MicroSystems.

Application: Automotive, Backlighting
Voltage Output: 4.05V to 4.45V
Frequency: 200kHz to 2.15MHz
Outputs: 4
Current Output: 210mA per channel
Topology: SEPIC and Step-Up (Boost)
Dimming: Analog and PWM
Voltage Supply: 4.5V to 40V
Mounting: Surface Mount
Package: 24-WFQFN Exposed Pad
Operating Temperature: -40°C to 125°C (TA)
