Same model may have multiple batches, images only for reference.

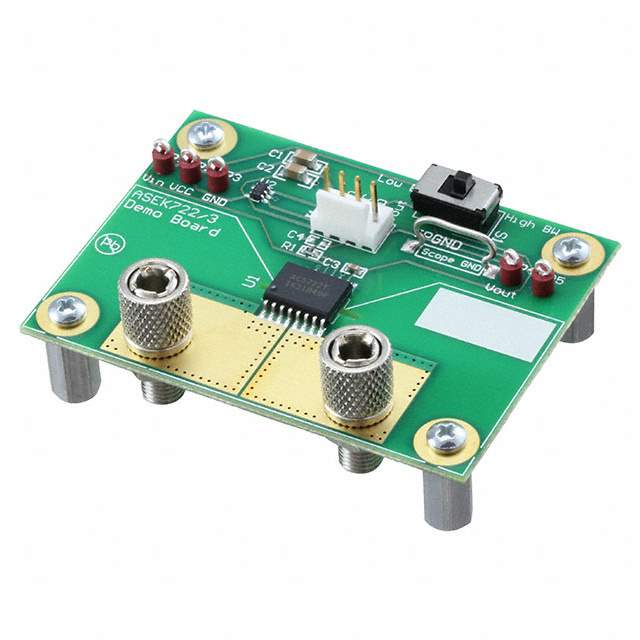

ASEK722KMA-10AB-T-DK Real Image
Same model may have multiple batches, images only for reference.

ASEK722KMA-10AB-T-DK

Part No ASEK722KMA-10AB-T-DK
Manufacturer Allegro MicroSystems, LLC
Catalog Evaluation Boards - Sensors
Description EVAL BOARD FOR ACS722KMA / ACS722KMA - Current Sensor Sensor Evaluation Board
Datasheet
ASEK722KMA-10AB-T-DK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - Sensors
Mfr Allegro MicroSystems
Package Bulk
Sensor Type Current Sensor
Sensing Range 10A
Interface Analog
Sensitivity 132mV/A
Voltage - Supply 3V ~ 3.6V
Supplied Contents Board(s)
Utilized IC / Part ACS722KMA
Base Product Number ASEK72
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9030.33.3800
Win Source Part Number 1347225-ASEK722KMA-10AB-T-DK
Ultra Librarian 3D Model Ultra Librarian ASEK722KMA-10AB-T-DK CAD Model

Description

The 1347225-ASEK722KMA-10AB-T-DK is an evaluation board for the ACS722KMA current sensor.

  • Package: Bulk
  • Standard Package: One
  • Interface: Analog
  • Sensitivity: 132mV/A
  • Supplied Contents: Board(s)
  • Sensing Range: 10A
  • Voltage Range: 3V to 3.6V
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS Code: 9030.33.3800
  • Manufacturer: Allegro MicroSystems
  • Base Product Number: ASEK72
