AO7400

Part No AO7400
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 1.7A SC70-3
Datasheet
AO7400 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 1.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 10V
Gate-Source Threshold Voltage 1.4V @ 250μA
Max Gate Charge 4.82nC @ 4.5V
Max Input Capacitance 390pF @ 15V
Maximum Gate-Source Voltage ±12V
Power Dissipation (Max) 350mW (Ta)
Maximum Rds On at Id,Vgs 85 mOhm @ 1.5A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SC-70-3
Dimension SC-70, SOT-323
Win Source Part Number 009778-AO7400
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name AO7400
Introduction Date June 29, 2005
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2022

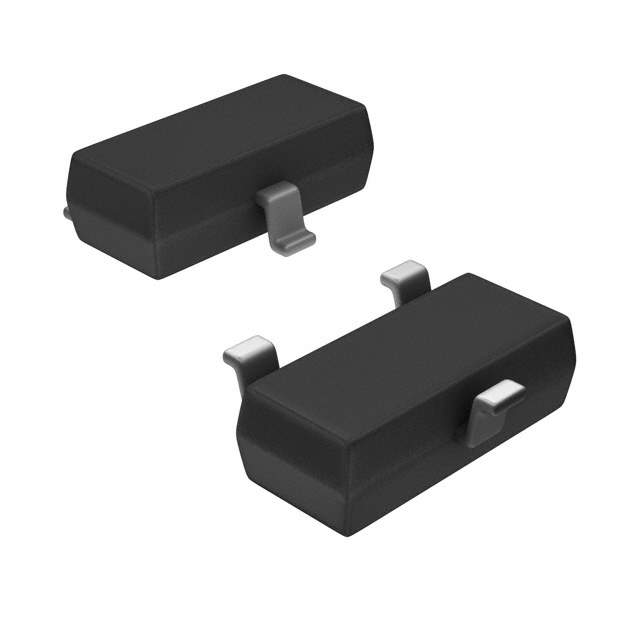

Ultra Librarian 3D Model Ultra Librarian AO7400 CAD Model

Description

AO7400 Features & Benefits

  • High-speed switching
  • Low gate charge
  • Compact package

The AO7400 is a versatile dual P-channel MOSFET that provides excellent switching performance in a compact SMD package. With its low gate charge, it offers reduced switching losses, which is crucial for battery-powered and portable applications.

Applications

  • Battery-powered devices
  • DC-DC converters
  • Load switches
  • Portable electronics

Its small size and low power consumption make it ideal for compact circuits where space and efficiency are priorities.
