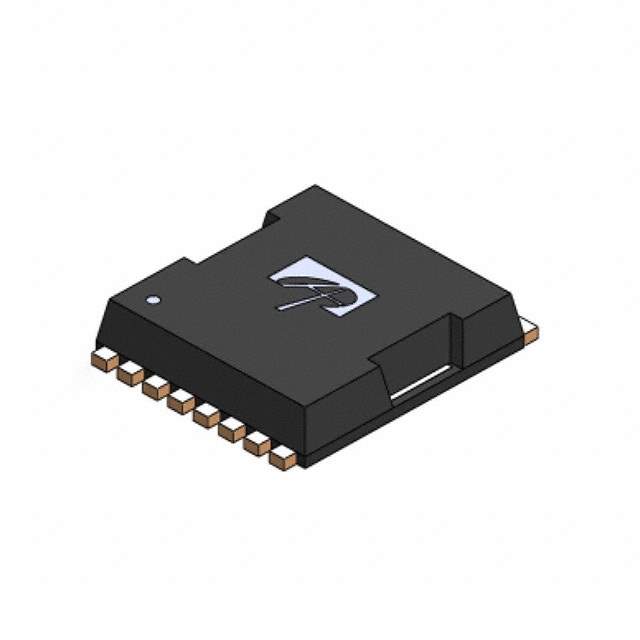

The Alpha & Omega Semiconductor Inc. AOTL66401 is a MOSFET (Metal Oxide) technology electronic component with an N-channel FET type.

• FET Type: N-Channel
• Package: Reel
• Mounting Style: SMD
• Supplier Device Package: TOLLA
• Manufacturer Package: 8-PowerSFN
• Drain to Source Voltage (Vdss): 40V
• Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
• Operating Temperature: -55°C to 175°C
• Power Dissipation (Maximum): 8.3W, 300W (Tc)
• Manufacturer Pack Quantity: 2,000
• MSL Level: 1 (Unlimited)
• Rds On (Maximum) @ Id, Vgs: 0.7mOhm @ 20A, 10V
• Gate Charge (Qg) (maximum) @ Vgs: 340nC @ 10V
• Input Capacitance (Ciss) (maximum) @ Vds: 19180pF @ 20V
• Current - Continuous Drain (Id) @ 25°C: 82A, 400A (Tc)
• Vgs(th) (Maximum) @ Id: 2.3V @ 250μA
• Maximum Vgs: ±20V
