Same model may have multiple batches, images only for reference.

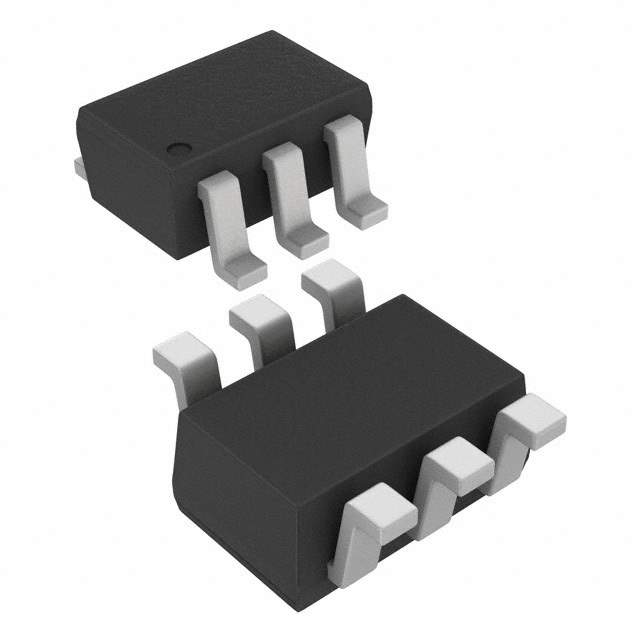

AOZ6135HI Real Image
Same model may have multiple batches, images only for reference.

AOZ6135HI

Part No AOZ6135HI
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description High Performance, Low RON, 1Ω SPDT Analog Switch | IC ANLG SWITCH SPDT SC70-6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Tape and Reel
Switch Circuit SPDT
On-State Resistance (Maximum) 1.2Ohm
Channel-to-Channel Matching (ΔRon) 30mOhm
Supply Voltage , Single (V+) 1.65V ~ 5.5V
Switch Time (Ton, Toff) (Maximum) 40ns, 20ns
-3db Bandwidth 180MHz
Charge Injection 75pC
Channel Capacitance (CS(off), CD(off)) 7pF
Current - Leakage (IS(off)) (Maximum) 20nA
Crosstalk -60dB at 1MHz
Temperature Range - Operating -40°C ~ 85°C
Manufacturer Package 6-TSSOP, SC-88, SOT-363
Supplier Device Package SC-70-6
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Win Source Part Number 1145102-AOZ6135HI
Manufacturer Homepage www.aosmd.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AOZ6135HI CAD Model

Description

The AOZ6135HI is an SPDT switch circuit designed for use in integrated circuits.

  • Maximum On-State Resistance: 1.2Ohm
  • Switching Frequency: 180MHz
  • Channel-to-Channel Matching: 30mOhm
  • Channel Capacitance: 7pF
  • Package: SC-70-6
  • Halogen-Free: Compliant
  • Popularity: Medium
  • Supply: Limited
  • Manufacturer Pack Quantity: 3000
  • Operating Temperature: -40°C to 85°C
