Same model may have multiple batches, images only for reference.

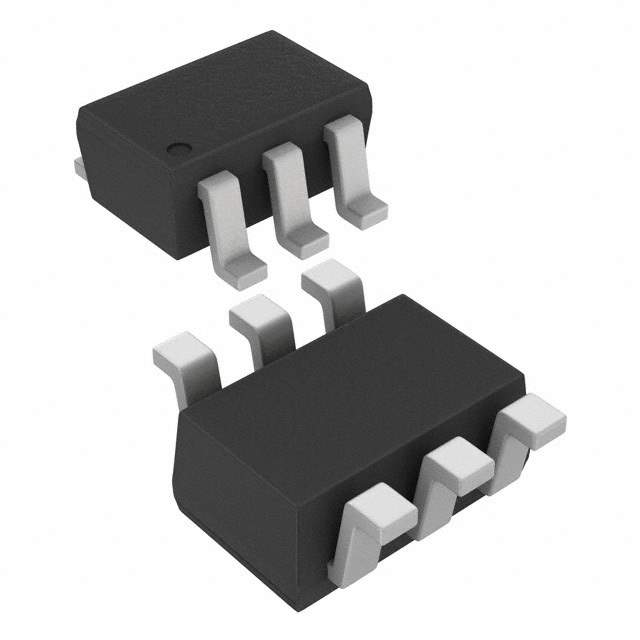

AOZ8000HI Real Image
Same model may have multiple batches, images only for reference.

AOZ8000HI

Part No AOZ8000HI
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog TVS - Diodes
Description Plastic Encapsulated Device | TVS DIODE 5V 15V SC70-6
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Tape and Reel
Type Steering (Rail to Rail)
Unidirectional Channels 4
Voltage - Reverse Standoff 5V
Voltage - Breakdown (Minimum) 6.6V
Voltage - Clamping (Maximum) at Ipp 15V
Current - Peak Pulse (10/1000μs) 5A (8/20μs)
Power - Peak Pulse 60W
Power Line Protection Yes
Applications Ethernet
Capacitance at Frequency 1.85pF at 1MHz
Temperature Range - Operating -55°C ~ 125°C
Mounting Style SMD
Manufacturer Package 6-TSSOP, SC-88, SOT-363
Supplier Device Package SC-70-6
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Win Source Part Number 1145105-AOZ8000HI
Manufacturer Homepage www.aosmd.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian AOZ8000HI CAD Model

Description

The AOZ8000HI is a product of Alpha & Omega Semiconductor Inc.

  • Type: Steering (rail to rail)
  • Feature: Power line protection
  • Manufacturer Homepage: www.aosmd.com
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (Unlimited)
