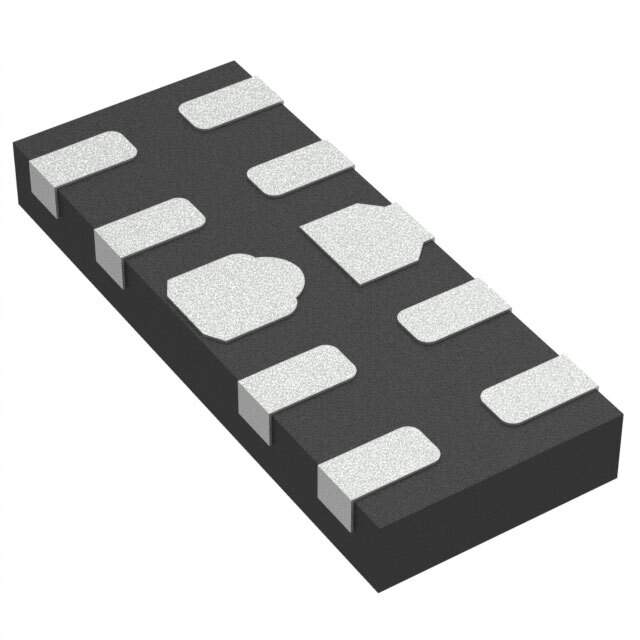

AOZ8819DI-05_2 Real Image
Same model may have multiple batches, images only for reference.

AOZ8819DI-05_2

Part No AOZ8819DI-05_2
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 9VC 10DFN / 9V Clamp 12A Ipp Tvs Diode Surface Mount 10-DFN (2.5x1)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Alpha & Omega Semiconductor Inc.
Package Tape & Reel (TR)
Product Status Obsolete
Type Steering (Rail to Rail)
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 9V
Current - Peak Pulse (10/1000µs) 12A
Power Line Protection No
Applications DVI, HDMI, USB
Capacitance @ Frequency 0.6pF @ 1MHz
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 10-UFDFN
Supplier Device Package 10-DFN (2.5x1)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 785-AOZ8819DI-05_2TR
Standard Package 3,000
Win Source Part Number 1045237-AOZ8819DI-05_2
Ultra Librarian 3D Model Ultra Librarian AOZ8819DI-05_2 CAD Model

Description

The AOZ8819DI-05_2 is a steering (rail to rail) TVS diode designed for DVI, HDMI, and USB applications.

  • Manufacturer: Alpha & Omega Semiconductor Inc.
  • Package: Tape and Reel (TR)
  • Standard Package: 3,000
  • Channels: 4 Unidirectional
  • Voltage Reverse Standoff: 5V (max)
  • Voltage Breakdown: 6V
  • Voltage Clamping: 9V @ Ipp
  • Capacitance: 0.6pF @ 1MHz
  • Peak Pulse Current: 12A (10/1000µs)
  • Package/Case: 10-UFDFN
  • Supplier Device Package: 10-DFN (2.5x1)
  • Operating Temperature: -40°C ~ 85°C (TA)
